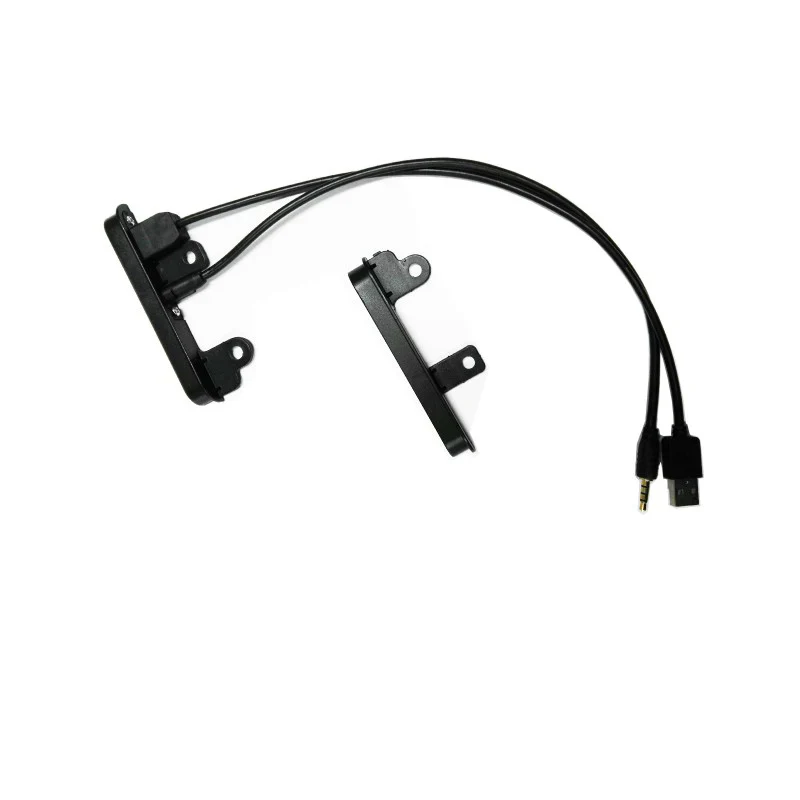

CAC FATOYOTATRIMAUX7 Double DIN Side Trim Brackets with USB & AUX for Toyota & Subaru BRZ

Professional gap-filling brackets with integrated connectivity for Toyota's extensive vehicle platform.

Product Overview

The CAC FATOYOTATRIMAUX7 Double DIN Side Trim Brackets deliver the missing link in Toyota and Subaru aftermarket head unit installations—eliminating unsightly gaps while adding functional USB and AUX connectivity. Designed to fill the left and right side voids created when installing double DIN receivers into Toyota's single DIN or large-aperture factory dash openings, these brackets transform amateur-looking installations into factory-grade finishes. The integrated USB and 3.5mm AUX ports provide convenient front-panel access for device charging and audio connectivity without requiring separate mounting solutions or cable routing.

Compatible with an extensive range spanning 26+ Toyota models from 1984 to current, plus Subaru BRZ (2012-2016), these brackets accommodate Toyota's diverse platform architecture from compact hatchbacks (Yaris, Echo) through to heavy-duty commercial vehicles (HiAce, Hilux) and premium SUVs (Landcruiser, Prado, Kluger). The universal Toyota fitment ensures workshops can stock one solution for the majority of Toyota aftermarket installations across three decades of production.

Key Specifications

• Universal Toyota and Subaru BRZ compatibility across 26+ models (1984-current)
• Integrated USB charging port and 3.5mm AUX input on trim brackets
• Designed to fill left and right side gaps in double DIN installations
• Constructed from durable ABS plastic with matte black finish
• Compatible vehicle range: Toyota 86 (2012+), Avensis Verso/Ipsum (2000-2009), Camry (2002-2006), Celica (1999-2005), Corolla (2002-2015), Echo (1999-2005), FJ Cruiser (2007-2015), HiAce (2004+), Hilux (2005-2013), Kluger (2007-2013), Landcruiser 70/200 Series (1984-current), MR2 Spyder (2000-2005), Prado (2003-2013), Prius C (2009+), RAV4 (2000-2011), Tundra (2007-2013), Tarago/Estima (2011+), Yaris (2005-2013); Subaru BRZ (2012-2016)
• Supplied as pair (left and right brackets with integrated connectivity)

Features & Benefits

Integrated Connectivity Convenience: Built-in USB and AUX ports eliminate the need for separate mounting brackets or dash modifications, providing clean front-panel access for smartphone charging and audio input—essential for modern users requiring device connectivity beyond Bluetooth.

Universal Toyota Platform Coverage: One SKU covers 26+ Toyota models spanning passenger vehicles, sports cars, utes, SUVs, and commercial vehicles from 1984-current, making it essential workshop stock for the Australian market where Toyota holds dominant market share.

Professional Gap Elimination: Transforms the hollow voids common in Toyota double DIN installations into finished, factory-appearance brackets—critical for maintaining vehicle resale value and demonstrating professional installation quality to customers.

Dual-Vehicle Sports Platform: Shared engineering between Toyota 86 and Subaru BRZ (2012-2016) means one bracket solution serves both models in this popular enthusiast segment, simplifying inventory for workshops servicing performance vehicle upgrades.

Heat-Resistant ABS Construction: Material withstands Australian cabin temperatures exceeding 70°C in vehicles like Hilux, Landcruiser, and HiAce operating in remote and commercial environments without warping, fading, or compromising USB/AUX connection integrity.

Technical Specs

• Vehicle Application: Toyota 86 (ZN6, 2012+), Avensis Verso/Ipsum (ACM20, 2000-2009), Camry (ACV30, 2002-2006), Celica (ZZT230, 1999-2005), Corolla (ZZE120/ZRE150, 2002-2015), Echo (NCP10, 1999-2005), FJ Cruiser (GSJ15, 2007-2015), HiAce (KDH200, 2004+), Hilux (KUN/GGN15-25, 2005-2013), Kluger (GSU40, 2007-2013), Landcruiser 70 Series (HZJ/VDJ70, 1984+), Landcruiser 200 Series (UZJ/VDJ200, 2007-current), MR2 Spyder (ZZW30, 2000-2005), Prado (J120/J150, 2003-2013), Prius C (NHP10, 2009+), RAV4 (ACA20/ACA30, 2000-2011), Tundra (2007-2013), Tarago/Estima (ACR/GSR50, 2011+), Yaris (NCP90, 2005-2013); Subaru BRZ (ZC6, 2012-2016)
• Bracket Type: Double DIN side trim gap fillers (pair)
• Integrated Features: USB charging port (Type-A), 3.5mm AUX input jack
• Material: ABS plastic moulding
• Finish: Matte black
• Weight: Not specified
• Package Contents: 1 x left side bracket (with USB/AUX), 1 x right side bracket (with USB/AUX)
• Installation Note: Brackets fill side gaps only; fascia plate required separately for complete installation
• Cable Length: Not specified (verify sufficient length for head unit rear panel connection)

Frequently Asked Questions

Do these brackets include a fascia plate or just the side trims?

These are side trim brackets only—they fill the left and right gaps around a double DIN head unit. You'll need a separate Toyota-specific fascia plate (model-dependent) to complete the installation. The brackets work in conjunction with fascias to create a complete, gap-free finish.

How do the USB and AUX connections wire to the head unit?

The USB and AUX cables extend from the brackets and connect to the rear of your aftermarket head unit (assuming it has compatible inputs). Cable routing through the dash cavity is required during installation. Verify your head unit has rear USB and AUX inputs before ordering.

Will these fit my 2014 Hilux and 2016 Landcruiser 200 Series?

The Hilux coverage ends at 2013 (AN120/AN130 generation), requiring different brackets for 2015+ models. The Landcruiser 200 Series brackets cover 2016+ models, so your 2016 is compatible. Always verify your vehicle's generation and build date as mid-cycle updates can affect fitment.

Can I use these brackets without connecting the USB and AUX ports?

Yes, the brackets function as gap fillers regardless of whether you connect the USB/AUX cables. If your head unit lacks rear USB/AUX inputs or you don't require the functionality, simply route the cables behind the dash and leave them disconnected—the brackets still eliminate the side gaps.

Do these work with single DIN head units or only double DIN?

These are specifically designed for double DIN (4" height) installations. Single DIN head units require different pocket or bracket solutions to fill the vertical space, and these side trims won't provide adequate coverage for single DIN applications.

Compatible With / Goes Well With

Essential Installation Components:

• Toyota model-specific double DIN fascia plate (varies by vehicle—confirm separately)
• Toyota ISO wiring harness (model and year-specific)
• Antenna adapter (ISO to DIN or Fakra, depending on factory audio system)
• Steering wheel control interface (if retaining factory steering controls)

Recommended Head Units with Rear USB/AUX Inputs:

• Pioneer MVH, AVH, and DMH series receivers
• Kenwood DDX and DMX series multimedia units
• Sony XAV series with USB/AUX compatibility
• Alpine ILX series touchscreen receivers
• JVC KW series double DIN head units

Compatible Toyota Models:

• Passenger/Sports: 86, Camry, Celica, Corolla, Echo, MR2 Spyder, Prius C, Yaris
• SUV/Wagon: Avensis Verso/Ipsum, Kluger, RAV4, Tarago/Estima
• 4WD/Commercial: FJ Cruiser, HiAce, Hilux, Landcruiser (70/200 Series), Prado, Tundra

Compatible Subaru Models:

• BRZ (2012-2016, ZC6)

Caution: Year ranges represent general fitment windows. Toyota frequently updates dash configurations during mid-generation facelifts. Verify your specific vehicle's chassis code and dash variant before ordering, particularly for long-running models like Hilux, Landcruiser, and HiAce.
