CAC FATOYOTAPRADO200920137 (F7TY23) Double DIN Fascia Kit for Toyota Prado 150 Series (2009-2013)

Complete fascia solution with factory screen relocation for pre-facelift Prado 150 Series.

Product Overview

The CAC FATOYOTAPRADO200920137 Double DIN Fascia Kit delivers a comprehensive installation solution for pre-facelift Toyota Prado 150 Series (2009-2013), including not only the fascia plate but also metal mounting brackets and factory display relocation hardware. This complete kit enables Prado owners to upgrade to aftermarket head units while retaining their factory reverse camera display—a critical advantage over fascia-only solutions that would eliminate this expensive OEM feature. The integrated relocation mounting repositions the factory screen to the lower dash area, maintaining full reverse camera functionality while accommodating modern touchscreen receivers in the upper position.

The 200mm x 100mm internal opening is optimised for Toyota's universal system format and larger aftermarket receivers, while an optional Toyota universal trim adapter (sold separately) reduces the aperture to 173mm x 100mm for standard double DIN units. This dual-dimension capability, combined with the factory screen retention hardware, makes it the most versatile and complete Prado 150 installation kit available for the 2009-2013 generation. Minor trimming may be required for certain oversized bezels, providing installation flexibility across diverse premium multimedia configurations.

Key Specifications

• Designed exclusively for Toyota Prado 150 Series pre-facelift (2009-2013, J150)
• Complete kit includes fascia plate, metal brackets, and factory screen relocation mounting
• Internal fascia dimensions: 200mm width x 100mm height (native opening)
• Optional compatibility: 173mm x 100mm with separately available Toyota universal trim adapter
• Constructed from durable ABS plastic with reinforced metal bracket system
• Factory reverse camera screen retention capability (for equipped vehicles)

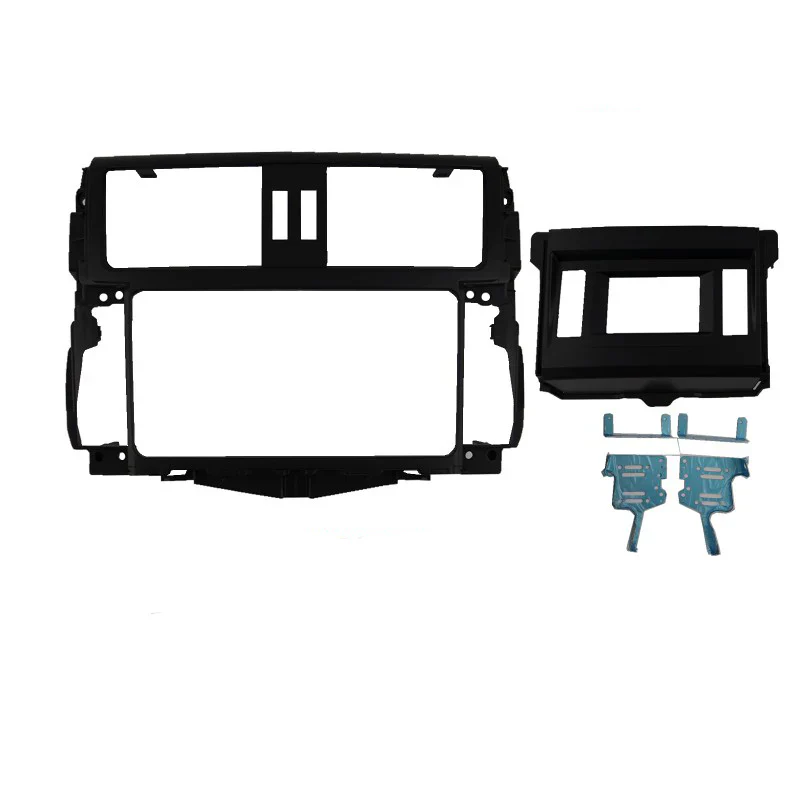

• Package contents: 1 x fascia plate, 1 x metal bracket set, 1 x relocation display mounting
• Supplied in black finish to match Prado 150 interior specifications

Features & Benefits

Complete Installation Solution: Unlike fascia-only kits, this includes metal brackets and factory screen relocation hardware in one package—eliminating the frustration of discovering missing components mid-installation and preserving the expensive factory reverse camera display that cost thousands as an original option.

Factory Screen Retention: The integrated relocation mounting enables dual-display configuration with aftermarket navigation/multimedia above and factory reverse camera below—critical for Prado owners who rely on OEM cameras for caravan towing, tight bush tracks, and rock crawling where rear visibility is essential.

Pre-Facelift Engineering: Specifically designed for 2009-2013 Prado 150's dashboard architecture, ensuring perfect alignment with the original centre console geometry, climate controls, and factory screen positioning—distinct from 2014+ post-facelift models which require different components.

Reinforced Metal Brackets: Professional-grade metal mounting system withstands corrugations, off-road vibration, and the harsh conditions common in Australian 4WD touring from Cape York to the Canning Stock Route—superior to all-plastic mounting solutions that can fail under extreme conditions.

Dual-Dimension Versatility: The 200mm x 100mm native opening accommodates large-format touchscreen systems popular in premium 4WD upgrades, while optional trim adapters enable standard 173mm x 98mm double DIN fitment—maximum flexibility without carrying multiple fascia variants for different customer requirements.

Technical Specs

• Vehicle Application: Toyota Prado 150 Series pre-facelift (2009-2013, J150)
• Chassis Code: J150 (pre-facelift generation)
• Fascia Type: Double DIN with large-format opening
• Internal Opening (Native): 200mm W x 100mm H
• Internal Opening (With Optional Trim Adapter): 173mm W x 100mm H
• Compatible Head Unit Size (Native): 200mm W x 100mm H systems
• Compatible Head Unit Size (With Adapter): 173mm W x 98mm H standard double DIN
• Material: ABS plastic fascia with metal mounting brackets
• Finish: Matte black
• Weight: Not specified
• Factory Screen Compatibility: Retains OEM reverse camera display (for equipped vehicles)
• Relocation Configuration: Factory screen relocates to lower dash, aftermarket unit installs above
• Trim Adapter Compatibility: Toyota universal trim adapter (sold separately, required for standard double DIN units)
• Modification Requirement: Minor trimming may be necessary for certain head unit models
• Package Contents: 1 x fascia plate, 1 x metal bracket set, 1 x relocation display mounting
• Installation Note: Professional installation recommended for proper screen relocation and bracket fitment

Frequently Asked Questions

What's the difference between this and the 2014+ Prado 150 fascia?

This kit is engineered for the pre-facelift 2009-2013 Prado 150 Series and includes factory screen relocation hardware. The 2014+ post-facelift models have significantly revised dashboard architecture requiring different fascia part numbers without the same relocation mounting. Always verify your Prado's build date—the facelift occurred mid-2013 for 2014 model year vehicles.

Will this work if my Prado doesn't have a factory screen?

Yes, the fascia and brackets still function for complete head unit replacement even without a factory screen. The relocation mounting is simply unused if your Prado wasn't equipped with the OEM reverse camera display. However, if you do have the factory screen, this kit preserves that valuable feature.

Do I need the Toyota universal trim adapter for standard head units?

If you're installing a standard double DIN receiver (173mm W x 98mm H), yes—you'll need the separately available Toyota universal trim adapter to reduce the 200mm opening to 173mm. If you're installing a large-format 200mm x 100mm system, no adapter is required.

How does the factory screen relocation work?

The included relocation mounting bracket repositions your factory reverse camera display to the lower dash area while the aftermarket head unit installs in the upper position. This creates a dual-display configuration maintaining OEM camera functionality for towing and off-road use while adding modern navigation and connectivity features.

Can I use this fascia on a 2014 or 2015 Prado 150?

No, this kit is specifically for pre-facelift 2009-2013 Prado 150 Series. The mid-cycle facelift introduced in 2014 completely revised the dashboard architecture, requiring the FATOYOTAPRADO2014ON7 fascia instead. Attempting to use pre-facelift components on post-facelift models will result in incompatibility.

Compatible With / Goes Well With

Essential Installation Components:

• Toyota Prado 150 Series ISO wiring harness (2009-2013 specific)
• Antenna adapter (Fakra to ISO or DIN, depending on factory audio system)
• Steering wheel control interface (if retaining factory steering controls)
• Reverse camera retention harness (to maintain factory camera functionality)
• Toyota universal trim adapter (required for 173mm x 98mm standard double DIN units)

Recommended Head Units:

Large-Format (200mm x 100mm):

• 9" and 10" Android-based multimedia systems
• Toyota-specific large-format receivers
• Premium navigation systems for off-road/touring

Standard Double DIN (with trim adapter):

• Pioneer MVH, AVH, and DMH series receivers
• Kenwood DDX and DMX series with Apple CarPlay/Android Auto
• Sony XAV series multimedia receivers
• Alpine ILX series touchscreen units

Compatible Vehicles:

• Toyota Prado 150 Series pre-facelift (2009-2013, J150)
• Compatible with all trim levels: GX, GXL, VX, Kakadu
• Factory screen relocation applies to vehicles equipped with OEM reverse camera display

Caution: This fascia kit is specifically for 2009-2013 Prado 150 Series (pre-facelift). The 2014+ models require different fascia part numbers (FATOYOTAPRADO2014ON7) due to dashboard architecture changes during the mid-cycle refresh. Verify your Prado's build date before ordering. Professional installation recommended for proper factory screen relocation and metal bracket fitment.
