CAC FASUZUKISWIFT2011ON7 (F7SZ7) Double DIN Fascia Kit for Suzuki Swift 2011 Onwards

Professional dashboard integration for your Suzuki Swift's aftermarket head unit upgrade.

Product Overview

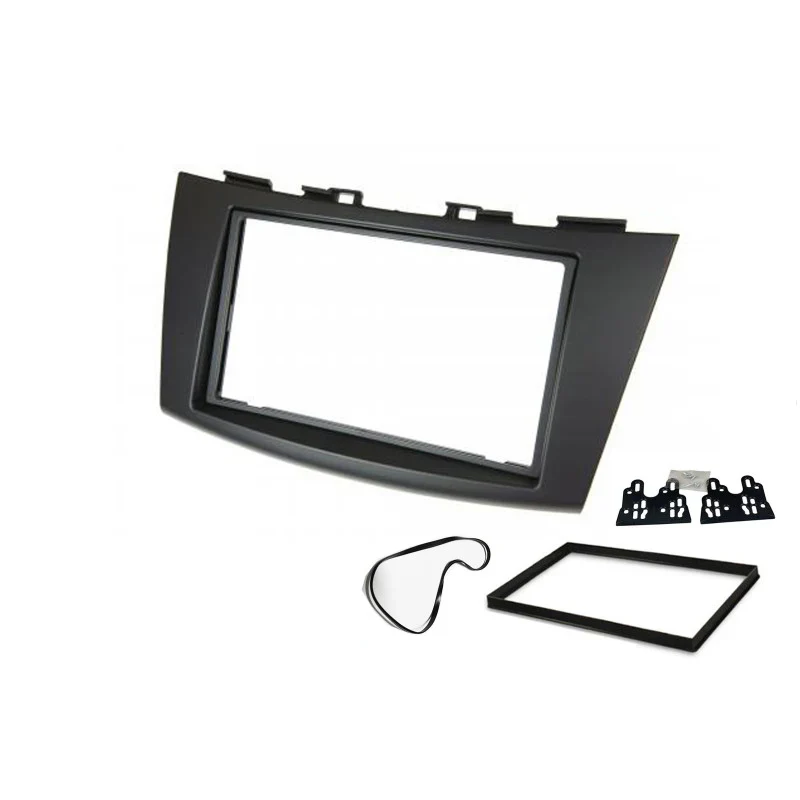

The CAC FASUZUKISWIFT2011ON7 is a complete double DIN fascia kit engineered specifically for Suzuki Swift models manufactured from 2011 onwards. This adapter panel converts your factory head unit opening to accept standard aftermarket double DIN receivers while maintaining your dashboard's original black aesthetic. Manufactured from high-quality ABS plastic with OEM-matched design, the kit includes all necessary components for professional installation: fascia panel, double DIN trim ring, side mounting brackets, rubber ring seal, and installation hardware. Compatible with both automatic and manual transmission variants across all Swift generations from 2011 to current models.

Key Specifications

• Vehicle compatibility: Suzuki Swift 2011 onwards (all transmission types)
• Opening dimensions without trim ring: 178mm W × 101mm H
• Opening dimensions with trim ring: 173mm W × 98mm H
• Material: High-quality ABS plastic in black finish
• Installation type: Double DIN aftermarket head unit adapter
• Complete kit includes panel, trim ring, side brackets, rubber ring, and screws
• Manufactured to factory specifications for precise dashboard integration

Features & Benefits

Factory-Matched Black Finish - OEM-specification construction with black ABS plastic ensures the fascia blends seamlessly with your Swift's original dashboard contours and texture, eliminating the aftermarket appearance common with generic adapters.

Universal Double DIN Compatibility - The standardised 178×101mm opening accepts virtually all aftermarket double DIN head units from Pioneer, Kenwood, Sony, JVC, and other major manufacturers, giving you unlimited upgrade options for modern features like Apple CarPlay and Android Auto.

Complete Installation Kit - Every component needed for professional installation is included: precision-cut fascia panel, double DIN trim ring for clean edges, side mounting brackets for secure fitment, rubber ring seal to eliminate rattles, and all required screws. No additional parts necessary.

Durable ABS Construction - High-grade automotive ABS plastic resists UV degradation, temperature extremes, and daily wear. The material maintains structural integrity across Australia's harsh climate conditions from outback heat to coastal humidity, preventing warping or fading over time.

Transmission-Universal Design - Engineered to accommodate both automatic and manual transmission Swift variants without modification, eliminating compatibility concerns across all model years from 2011 onwards including FZ, AZ, and current generation models.

Professional Finish with Rattle Prevention - Precision moulding with included rubber ring seal eliminates gaps and alignment issues that compromise appearance and create annoying rattles over corrugated roads, speed bumps, or rough terrain common in Australian driving conditions.

Technical Specs

• Product code: FASUZUKISWIFT2011ON7
• Brand: CAC
• Fitment: Suzuki Swift 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 onwards
• Generation compatibility: FZ (2011-2017), AZ (2017-present)
• Head unit size: Double DIN (2-DIN)
• External opening (no trim): 178mm × 101mm
• Internal opening (with trim): 173mm × 98mm
• Material composition: Automotive-grade ABS plastic
• Colour: Black (factory-matched)
• Mounting: Side bracket system included
• Special features: Rubber ring seal for rattle-free installation
• Weight: Approximately 0.5kg (complete kit)
• Package contents: Fascia panel, trim ring, side brackets, rubber ring, installation screws

Frequently Asked Questions

Does this fit both manual and automatic Swift models Yes, this fascia kit is designed to fit all Suzuki Swift variants from 2011 onwards regardless of transmission type or generation.

Will I need to modify the fascia for installation Minor trimming may be required depending on your specific vehicle configuration and the aftermarket head unit you're installing, though most installations require no modification for standard double DIN units.

What size head units does this accept This accepts standard double DIN (2-DIN) aftermarket head units with dimensions up to 178mm wide × 101mm high, which includes most major brands like Pioneer, Kenwood, Sony, Alpine, and JVC.

Does the kit include all mounting hardware Yes, the complete kit includes the fascia panel, double DIN trim ring, side mounting brackets, rubber ring seal for rattle prevention, and all necessary screws for installation.

Will this work with factory steering wheel controls The fascia itself is compatible with vehicles that have steering wheel controls, but you'll need a separate steering wheel control harness adapter to retain that functionality with your new aftermarket head unit.

Compatible With / Goes Well With

Recommended Aftermarket Head Units:

• Pioneer double DIN receivers with Apple CarPlay/Android Auto
• Kenwood DMX series multimedia receivers
• Sony XAV double DIN head units
• Alpine iLX series digital media receivers
• JVC multimedia receivers with smartphone integration

Installation Accessories:

• Suzuki Swift ISO wiring harness adapter (2011+ specific)
• Suzuki antenna adapter (if required for your head unit)
• Steering wheel control retention interface (to maintain factory controls)
• Double DIN cage and installation tools

Note: Verify your specific head unit dimensions before purchase. Some multimedia receivers with larger screens may require additional clearance verification. The rubber ring seal included helps accommodate minor dimensional variations.

Weight

Approximately 0.5kg (complete kit with all components)
