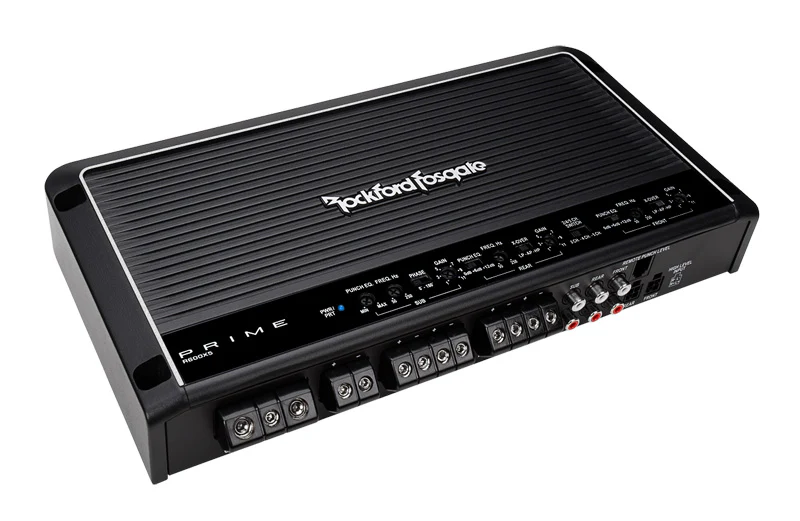

Rockford Fosgate R600X5 Prime 600 Watt 5-Channel Amplifier

Designed to Run an Entire Car Audio System!

The PRIME R600X5 is a 5-channel amplifier designed to run an entire car audio system! The R600X5 produces up to 75 Watts into each of its four channels with a dedicated subwoofer channel capable of producing 300 Watts into 2-Ohms.

The Prime R600X5 amplifier produces up to 75 Watts into each of its 4-channels plus 300 Watts into a dedicated 5th (subwoofer) channel. This 5-channel design makes it the perfect amplifier when you want one amplifier to run it all! The Prime series offers quality and power from Rockford Fosgate at a great price. Car Audio Fanatics rock out!

Features:

• RCA and High level Input with 2/4/5 Channel Select
• 12dB/octave Butterworth crossover
• On Board Punch EQ Control
• Remote PLC (Punch Level Control) - Sub Channel
• Separate Front, Rear and Sub Gain Control
• Real time output and power supply thermal sensing
• Cast aluminum heatsink
• 4 Gauge power/ground connectors
• MOSFET power supply
• Over current protection
• Short circuit protection
• Muted turn on

Specifications:

• CEA-2006 Compliant
• Number of Channels 5
• Total Power (Sum of Rated Power) 600 Watts RMS
• Rated Power (RMS Continuous Power) 50 Watts x 4 @ 4-Ohms + 200 Watts x 1 @ 4-Ohms, 75 Watts x 4 @ 2-Ohms + 300 Watts x 1 @ 2-Ohms
• Dynamic Power (PVC/PowerCube®) 58 Watts x 4 @ 4-Ohms 0° Res + 224 Watts x 1 @ 4-Ohms 0° Res, 95 Watts x 4 @ 2-Ohms 0° Res + 403 Watts x 1 @ 2-Ohms 0° Res
• Bridgeable Yes
• Frequency Response 20Hz - 20kHz +/-1dB
• Input Sensitivity 450 mV - 12 V
• Circuit Topology Class Class A/B + Class D (Sub)
• Efficiency (average) Front/Rear: 64% @ 4-Ohm, Sub: 85% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise) Front/Rear 4-Ohm: <1.0%, Front/Rear 2-Ohm: <1.0%, Sub 4-Ohm: <1.0%, Sub 2-Ohm: <1.0%
• Signal Input High Level: 2 x 4-pin MOLEX, Low Level: 3 Pair RCA
• Tone Controls Front/Rear: 0dB/+6dB/+12dB @ 45Hz, Sub: Variable 0dB to +12dB @ 45Hz, Sub: 0°/180° Phase Control
• Crossover Controls Front/Rear: High-Pass/Low-Pass 50-250Hz, Sub: Low-Pass variable 50Hz - 250Hz
• Remote Controls Punch Level Control (when connected, is linked to "gain control" to provide remote output level)
• Visual Indicators Power Protect
• Power Wire Gauge 4 AWG
• Power Input Connector Screw Terminal
• Speaker Wire Gauge 8 AWG
• Speaker Output Connector Screw Terminal
• Cooling Convection
• Operating Voltage 9 - 16 VDC
• Recommended Fuse (not included) 80 A
• Average Current Draw (13.8V Music) 35 A
• Max. Current Draw (13.8V Sinewave) 70 A
• Suggested Alternator 75 A
• Dimensions (H x W x D) 1.98" x 6.77" x 13.19" (5cm x 17.2cm x 33.5cm)
• Shipping Weight9.5 lbs. (4.30 Kg.)
