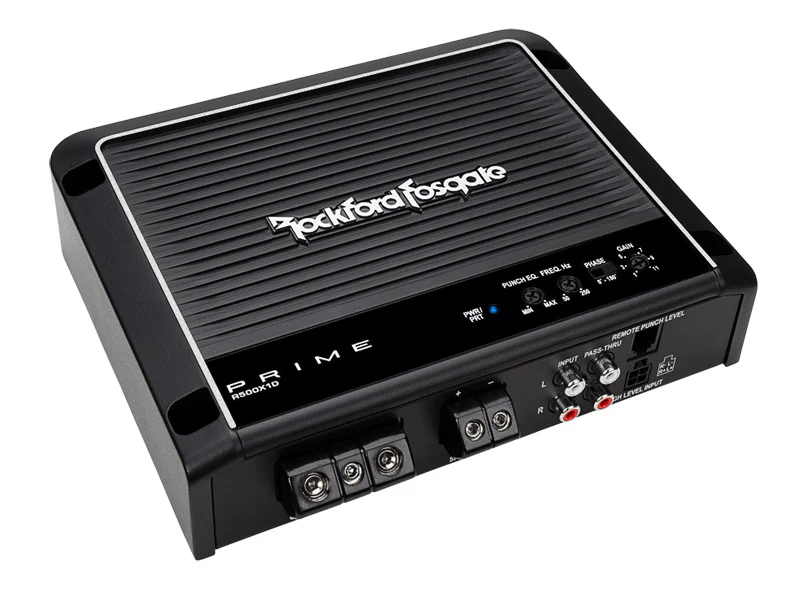

Rockford Fosgate R500X1D Prime 500 Watt Class-D Mono Amplifier

Are You Ready for a Dedicated Subwoofer Amplifier for Your Car or Truck?

The Prime R500X1D is a 500 watt mono amplifier using efficient Class-D circuit topology. This amplifier is capable of running a 2-Ohm load and includes on-board Punch Bass and remote Punch Level Control.

The Prime R500X1D is the perfect companion for any Car Audio Fanatic getting into mobile audio who wants a two-amplifier system: one amp running mids/highs and the second running subwoofers. This class D mono amplifier features variable Punch Bass, variable crossovers, Pass-Thru jacks to daisy chain another amplifier, and a remote Punch Level Control for mounting under the dash or the center console.

Features:

• 12dB/octave Butterworth crossover
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz
• High level inputs
• Remote PLC (Punch Level Control)
• 0°/180° Phase Switch
• Real time output and power supply thermal sensing
• Cast aluminum heatsink
• 4 Gauge power/ground connectors
• MOSFET power supply
• Over current protection
• Short circuit protection
• Muted turn on

Specifications:

• CEA-2006 Compliant
• Number of Channels 1
• Total Power (Sum of Rated Power) 500 Watts RMS
• Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4-Ohms, 500 Watts x 1 @ 2-Ohms
• Dynamic Power (PVC/PowerCube®) 333 Watts x 1 @ 4-Ohms 0° Res, 647 Watts x 1 @ 2-Ohms 0° Res
• Bridgeable No
• Frequency Response 20Hz to 250Hz +/-1dB
• Input Sensitivity 150 mV to 4 V
• Circuit Topology Class Class D
• Efficiency (average) 89% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%
• Signal Input High Level: 4-pin molex, Low Level: 1 RCA Pair
• Signal Output Low Level: 1 RCA Pair
• Tone Controls Punch Bass: 0dB to +12dB @ 45Hz, Phase Control: Variable 0° to 180°
• Crossover Controls Low-Pass (LP): 50Hz to 250Hz @ 12dB/octave Butterworth
• Remote Controls Punch Level Control: When connected is linked to "gain control" to provide remote output level
• Visual Indicators Power Protect
• Power Wire Gauge 4 AWG
• Power Input Connector Screw Terminal
• Speaker Wire Gauge 8 AWG
• Speaker Output Connector Screw Terminal
• Cooling Convection
• Operating Voltage 9 - 16 VDC
• Recommended Fuse (not included) 50 A
• Average Current Draw (13.8V Music) 25 A
• Max. Current Draw (13.8V Sinewave) 50 A
• Suggested Alternator 75 A
• Dimensions (H x W x D) 1.98 x 6.77 x 8.5 (in), 5.02 x 17.19 x 21.59 (cm)
• Shipping Weight 5.1 Lbs. (2.31 Kg.)
