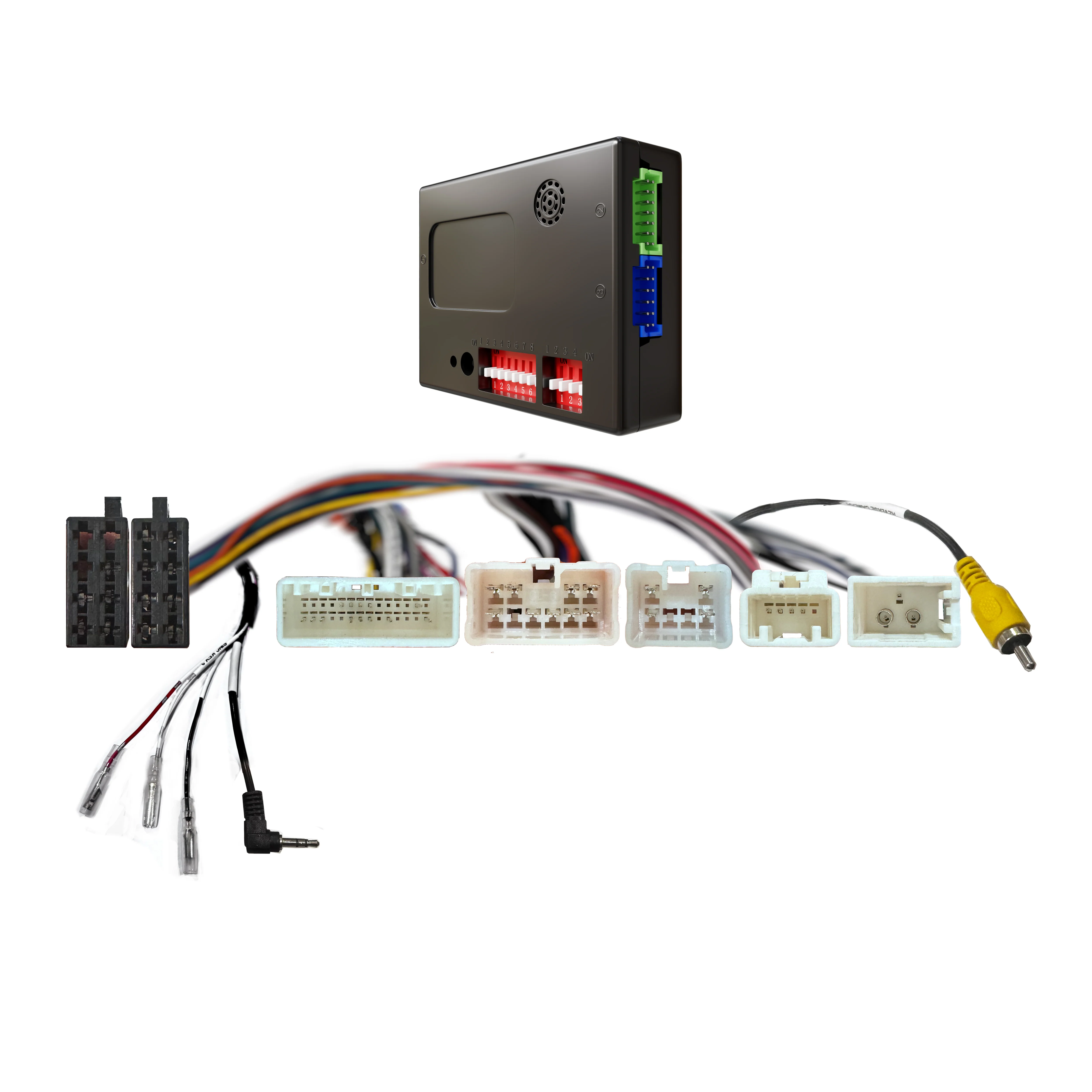

CAC HSR6K1 - Subaru Harness with SWC, Front Side Rear Cameras, Antenna
CAC HSR6K1 - Subaru Harness with SWC, Front Side Rear Cameras, Antenna
Plug-and-play integration harness for Subaru Forester, Impreza, Liberty, Outback, and XV enabling aftermarket head unit installation while retaining factory steering wheel controls, complete multi-camera system including front, side, and rear cameras, and antenna connection without cutting or splicing factory harnesses. The Car Audio Connect CAC HSR6K1 harness is specifically designed for Subaru Forester 2018+, Impreza 2017+, Liberty 2018-2020, Outback 2018-2020, and XV 2017+ with Dash 1 2 Standard and factory front, side, and rear camera systems providing seamless connection between aftermarket stereos and factory wiring systems. This professional-grade integration solution retains steering wheel control functionality, preserves complete factory camera system including front camera, side cameras, and rear camera for comprehensive 360-degree visibility, and includes factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations and multiple camera inputs, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Subaru Forester 2018+ Dash 1 2 Standard & Front Side Rear Camera
- Subaru Impreza 2017+ Dash 1 2 Standard & Front Side Rear Camera
- Subaru Liberty 2018-2020 Dash 1 2 Standard & Front Side Rear Camera
- Subaru Outback 2018-2020 Dash 1 2 Standard & Front Side Rear Camera
- Subaru XV 2017+ Dash 1 2 Standard & Front Side Rear Camera
Important Notes:
Multi-Camera System Required: This HSR6K1 harness is specifically designed for Subaru vehicles equipped with factory front, side, AND rear camera systems. Vehicles must have all three camera types (front, side, rear) installed for full compatibility. Models without complete multi-camera system or with only rear camera require different harness. Verify your vehicle has front camera, side cameras, and rear camera before purchase.
Dash 1 2 Standard Configuration Only: This harness supports Subaru Dash 1 2 Standard configuration only. Different dash configurations (Dash 3, 4, 5, or other variants) are NOT compatible with this harness and require different harness models. Check dash photos on www.caraudioconnect.com.au or contact us to verify your exact dash configuration before purchase.
Multiple Camera Input Head Unit Required: To utilize all factory camera retention (front, side, rear), your aftermarket head unit must support multiple camera inputs with camera switching capability. Standard head units with single camera input will only display one camera view. For full multi-camera functionality, select head units specifically designed for multi-camera systems with camera input switching. Most basic aftermarket head units only support rear camera input.
Liberty and Outback 2018-2020 Only: For Subaru Liberty and Outback, this harness is compatible with 2018-2020 models only. 2021+ Liberty and Outback models may use different wiring configurations and require different harness. For Forester 2018+, Impreza 2017+, and XV 2017+, extended model year coverage applies. Verify your exact model year before purchase.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Subaru dash kit separately matching your specific model, year, and Dash 1 2 Standard configuration for physical head unit mounting.
Camera-Compatible Head Unit Essential: Factory multi-camera retention requires aftermarket head unit with multiple camera inputs, camera switching capability, and compatible display interface. Verify head unit supports front, side, and rear camera inputs before purchase to ensure all factory camera functions operate correctly.
Key Features
Complete Steering Wheel Control Retention - Maintains full functionality of factory steering wheel audio controls including volume, track skip, source change, and phone controls providing safe hands-free operation without removing hands from steering wheel during aftermarket head unit upgrades.
Front Camera Retention - Retains factory front camera functionality providing forward visibility for low-speed maneuvering, parking assistance, and obstacle detection maintaining Subaru's comprehensive safety camera system.
Side Camera Retention - Preserves factory side camera operation on both driver and passenger sides providing blind spot visibility during lane changes and tight maneuvering situations enhancing safety awareness.
Rear Camera Retention - Maintains factory rear camera functionality for reverse parking and backing maneuvers completing comprehensive 360-degree camera coverage when combined with front and side cameras.
Multi-Camera System Integration - Integrates all three factory camera systems (front, side, rear) simultaneously allowing camera switching through aftermarket head unit interface maintaining Subaru's advanced safety camera technology.
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation and maintaining vehicle warranty compliance.
Wide Subaru Model Range - Supports Forester, Impreza, Liberty, Outback, and XV covering popular Australian Subaru models with factory multi-camera systems across Dash 1 2 Standard configuration.
Extended Year Coverage - Covers Impreza 2017+, XV 2017+, Forester 2018+, Liberty 2018-2020, and Outback 2018-2020 providing comprehensive compatibility across current Subaru lineup.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard wiring configurations and multiple camera input capability.
Factory Wiring Preservation - Maintains complete factory wiring integrity allowing full system reversal to factory configuration maintaining vehicle value and warranty.
Professional Grade Construction - High-quality connectors and wiring ensuring reliable long-term electrical connections for power, speakers, accessories, steering wheel controls, and multiple camera signals.
No Modifications Required - Eliminates need for cutting factory wiring or using electrical tape/crimp connectors preserving factory harness condition and camera system integrity.
Comprehensive Safety Feature Retention - Maintains Subaru's complete factory safety camera system ensuring all original visibility and parking assistance features continue functioning after head unit upgrade.
CarPlay/Android Auto Ready - Enables installation of modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation features while maintaining factory steering wheel controls and complete multi-camera system.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HSR6K1 |
| Product Code | HSR6K1 |
| Vehicle Compatibility | Subaru Forester 2018+, Impreza 2017+, Liberty 2018-2020, Outback 2018-2020, XV 2017+ |
| Dash Configuration | Dash 1 2 Standard |
| Camera Requirements | Factory Front, Side, and Rear Cameras Required |
| Steering Wheel Control Retention | Yes |
| Front Camera Retention | Yes (Multi-Camera Head Unit Required) |
| Side Camera Retention | Yes (Multi-Camera Head Unit Required) |
| Rear Camera Retention | Yes (Multi-Camera Head Unit Required) |
| Total Camera Inputs | 3 (Front, Side, Rear) |
| Antenna Adapter | Included |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Brands with Multi-Camera Support |
| Installation Type | Plug-and-Play |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Subaru Multi-Camera System Aftermarket Head Unit Installation |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: What type of aftermarket head unit do I need for all three cameras to work?
A: You need an aftermarket head unit specifically designed for multi-camera systems with at least three camera inputs (front, side, rear) and camera switching capability. Standard head units typically only have single rear camera input. Look for head units advertised with "multi-camera support," "360-degree camera," or "multiple camera inputs." Some premium Alpine, Kenwood, Pioneer, and Sony models offer multi-camera functionality. The head unit must also support camera input switching through touchscreen interface or physical buttons to toggle between front, side, and rear camera views. Contact us for head unit recommendations compatible with Subaru multi-camera systems.
Q: Will this work with my 2021 Subaru Outback?
A: No, the HSR6K1 is designed for Outback 2018-2020 models only. The 2021+ Outback uses different wiring configuration and requires a different harness model. Similarly, Liberty is compatible with 2018-2020 models only. For Forester 2018+, Impreza 2017+, and XV 2017+, extended year coverage includes newer models. Always verify your exact vehicle model and year to select the correct harness. Contact us with your vehicle details if uncertain about compatibility.
Q: My Subaru only has a rear camera, not front and side cameras. Is this harness still compatible?
A: No, the HSR6K1 is specifically designed for Subaru vehicles equipped with complete front, side, AND rear camera systems. If your vehicle only has rear camera or missing front/side cameras, this harness is NOT the correct match—you need a different CAC harness model designed for rear-camera-only configurations. This harness includes wiring for all three camera types and is intended for Subaru models with factory multi-camera safety systems. Verify your vehicle has all three camera types before ordering.
Q: What is Dash 1 2 Standard configuration and how do I verify mine?
A: Dash 1 2 Standard refers to specific Subaru dashboard factory configuration for head unit mounting and integration. Different dash configurations have different mounting depths, bezel designs, and wiring layouts. To verify your dash configuration, check compatible dash photos on www.caraudioconnect.com.au showing visual differences between configurations, or contact us with your vehicle's year, model, and trim level for confirmation. Using incorrect harness for different dash configuration will result in fitment issues and potential loss of factory features.
Q: Can I install this myself or should I hire a professional?
A: The harness is plug-and-play designed for simplified installation. Complete installation requires: Subaru dashboard removal (complexity varies by model—Forester, Impreza, Liberty, Outback, and XV each have different procedures and Dash 1 2 Standard configurations), disconnecting factory head unit, connecting HSR6K1 harness to factory wiring and aftermarket head unit ensuring proper connections for all three cameras (front, side, rear), steering wheel controls, and antenna, mounting new unit in vehicle-specific dash kit, programming camera switching on new head unit, testing steering wheel controls, verifying all three camera views display correctly with proper switching, and testing audio operation. If you have car audio installation experience and proper tools (trim removal tools, panel tools), DIY installation is feasible—allow 4-5 hours depending on model due to multi-camera system complexity. If unfamiliar with multi-camera integration or Subaru dashboard disassembly, professional installation strongly recommended (typically $250-400) to ensure all cameras function correctly with proper switching and all features work as intended.
