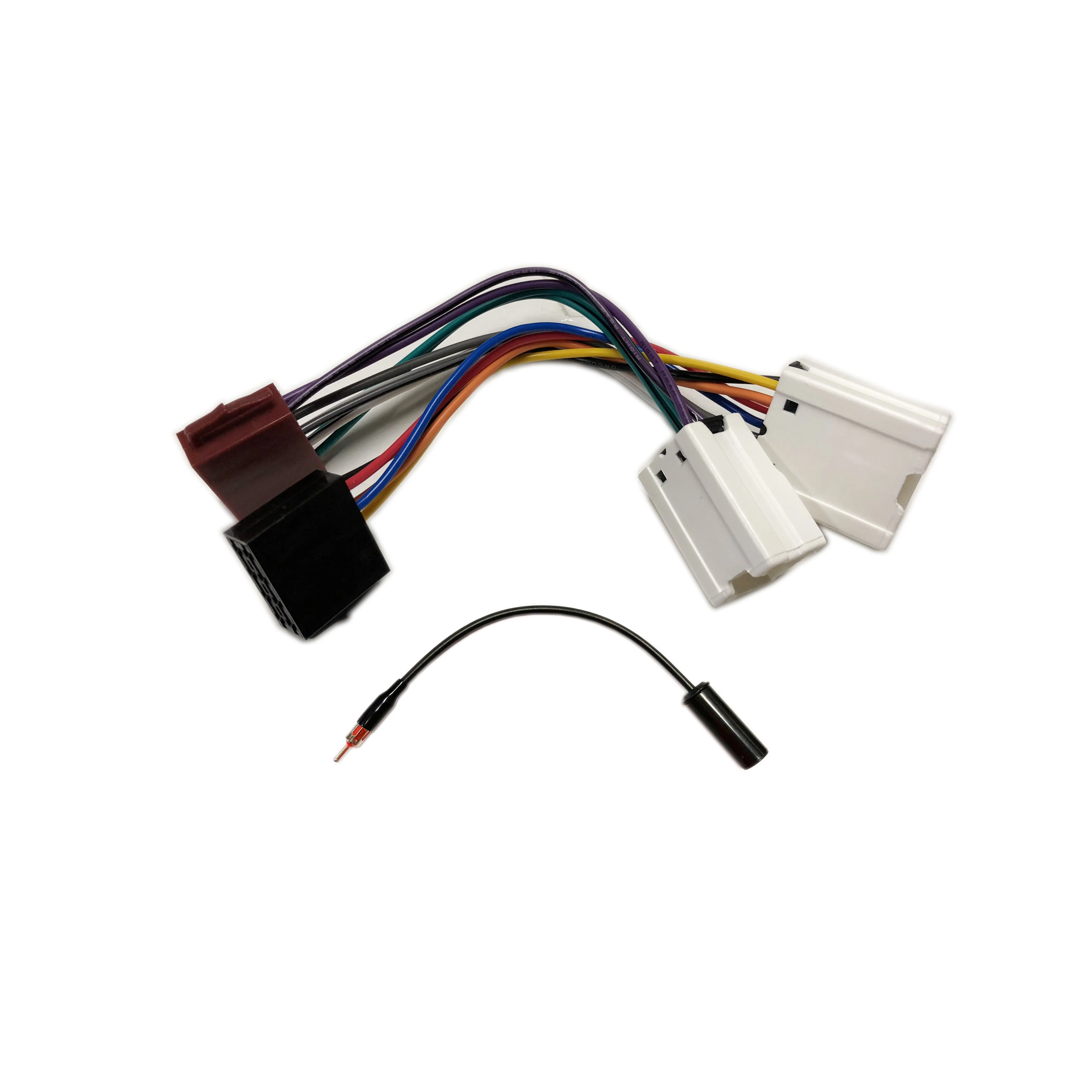

CAC HNS7K1 - Nissan Harness with Antenna
CAC HNS7K1 - Nissan Harness with Antenna
Plug-and-play integration harness for extensive range of Nissan vehicles enabling aftermarket head unit installation with direct connection to factory wiring systems and antenna connection without cutting or splicing factory harnesses. The Car Audio Connect CAC HNS7K1 harness is specifically designed for Nissan Maxima, Micra, Navara, Pathfinder, Patrol, and X-Trail models spanning 1997-2015 providing seamless connection between aftermarket stereos and factory wiring systems. This professional-grade integration solution includes factory radio antenna adapter ensuring AM/FM reception during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations, this versatile harness eliminates cutting or splicing factory wiring through direct plug-and-play connection enabling professional installation.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Nissan Maxima 1999-2003
- Nissan Micra 2007-2010
- Nissan Navara 1997-2006 Dash 2
- Nissan Navara 2006-2015 D22 Dash 2
- Nissan Pathfinder 2005-2007
- Nissan Patrol 1997-2009 Dash 1
- Nissan Patrol 2010+ GU7 Y61 Dash 1 Dash 2
- Nissan X-Trail 2001-2007 Dash 2 Dash 3
Important Notes:
Basic Wiring Harness - No Steering Wheel Control Support: This HNS7K1 harness is a basic power and speaker connection harness with antenna adapter only. It does NOT support steering wheel control retention, camera retention, USB retention, or other advanced factory accessory features. For Nissan vehicles with factory steering wheel controls, cameras, or USB, those features will not be retained with this harness unless your aftermarket head unit provides alternative connections. This is a basic integration solution for older Nissan models typically without advanced features.
Navara D22 Generation: This harness covers Navara 1997-2006 (Dash 2) and Navara 2006-2015 D22 Dash 2 configuration. The D22 is the second generation Navara spanning 1997-2015 in various markets with Dash 2 configuration. Verify your Navara is D22 generation with Dash 2 before purchase. Later Navara generations (D40, D23) require different harness models.
Patrol GU7 Y61 Coverage: This harness supports Patrol 1997-2009 Dash 1 and Patrol 2010+ GU7 Y61 with Dash 1 Dash 2 configurations. The GU7 Y61 designation refers to specific Patrol series (Y61 chassis code, GU7 generation). Verify your Patrol series and dash configuration before purchase.
Multiple Dash Configurations: This harness supports different dash configurations depending on model—Dash 2 for Navara; Dash 1 for Patrol 1997-2009; Dash 1 Dash 2 for Patrol GU7 Y61; Dash 2 Dash 3 for X-Trail. Verify your vehicle's specific dash configuration before purchase and ensure you order matching dash kit for physical mounting.
Extended Model Year Coverage: This harness supports Nissan vehicles from 1997-2015 covering Maxima 1999-2003, Micra 2007-2010, Navara D22 1997-2015, Pathfinder 2005-2007, Patrol 1997-2010+, and X-Trail 2001-2007. These are older generation Nissan models typically without steering wheel controls or advanced factory features.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Nissan dash kit separately matching your specific model, year, and dash configuration for physical head unit mounting.
Antenna Adapter Included: This harness includes factory radio antenna adapter connecting factory antenna to aftermarket head unit ensuring AM/FM radio reception. This is the primary feature retention beyond basic power and speaker connections.
Key Features
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Direct Factory Wiring Connection - Connects directly to factory wiring harness without cutting or splicing factory wires maintaining vehicle warranty compliance and enabling complete reversibility to factory configuration.
Extensive Nissan Model Coverage - Supports six different Nissan model ranges (Maxima, Micra, Navara, Pathfinder, Patrol, X-Trail) spanning 1997-2015 with single harness design.
Navara D22 Generation Support - Compatible with Navara D22 generation covering 1997-2015 production run of this popular Australian ute across Dash 2 configuration.
Patrol GU Series Coverage - Includes Patrol 1997-2009 and Patrol GU7 Y61 2010+ covering extended production of legendary Australian 4WD across multiple dash configurations.
Multiple Dash Configuration Support - Supports Dash 1, Dash 2, and Dash 3 configurations depending on model covering different Nissan dashboard layouts.
Plug-and-Play Installation - Simple connection between factory wiring and aftermarket head unit without requiring electrical modifications or soldering enabling straightforward installation process.
Wide Head Unit Brand Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard ISO wiring configurations.
Factory Wiring Preservation - Maintains complete factory wiring integrity allowing full system reversal to factory configuration maintaining vehicle value and warranty.
Professional Grade Construction - High-quality connectors and wiring ensuring reliable long-term electrical connections for power, speakers, accessories, and antenna.
No Modifications Required - Eliminates need for cutting factory wiring or using electrical tape/crimp connectors preserving factory harness condition.
Standard ISO Compatibility - Features standard aftermarket head unit connector configuration compatible with most modern single-DIN and double-DIN stereos.
Long-Term Model Support - Covers vehicles from 1997-2015 providing compatibility across multiple generations of Nissan models with single harness design.
Cost-Effective Upgrade Solution - Provides basic wiring connection and antenna adapter for aftermarket head unit upgrades in older Nissan models without steering wheel controls or advanced features.
CarPlay/Android Auto Ready - Enables installation of modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation features while maintaining factory wiring integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HNS7K1 |
| Product Code | HNS7K1 |
| Vehicle Compatibility | Nissan Maxima 1999-2003, Micra 2007-2010, Navara D22 1997-2015, Pathfinder 2005-2007, Patrol 1997-2010+, X-Trail 2001-2007 |
| Model Year Range | 1997-2015 |
| Navara Generation | D22 (1997-2015) Dash 2 |
| Patrol Series | 1997-2009 Dash 1, GU7 Y61 2010+ Dash 1 2 |
| Dash Configurations | Dash 1 (Patrol), Dash 2 (Navara, X-Trail), Dash 2 3 (X-Trail) |
| Steering Wheel Control Retention | No |
| Camera Retention | No |
| USB Retention | No |
| Antenna Adapter | Included |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Standard Brands |
| Installation Type | Plug-and-Play |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Nissan Basic Aftermarket Head Unit Installation |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: Does this harness retain steering wheel controls?
A: No, the HNS7K1 is a basic wiring harness that does NOT support steering wheel control retention. This harness provides power, speaker connections, and antenna adapter only without steering wheel control, camera, or USB retention features. Most Nissan models in the HNS7K1 compatibility list (1997-2015 Maxima, Micra, Navara D22, Pathfinder, Patrol, X-Trail) are older generation vehicles typically without factory steering wheel controls. If your Nissan has factory steering wheel controls and you want to retain them, you need a different CAC harness model with SWC retention capability. For newer Nissan models with steering wheel controls, see HNS2K7, HNS3K, or HNS5K harnesses.
Q: What is the difference between Navara D22, D40, and D23 generations?
A: Nissan Navara has multiple generations with different chassis codes. D22 (1997-2015) is the second generation covered by the HNS7K1 harness with Dash 2 configuration. D40 (2005-2015) is the third generation which requires different harness (such as HNS2K7). D23 (2015-2020) is the fourth generation which also requires different harness (such as HNS3K or HNS5K). To verify your Navara generation, check your vehicle's compliance plate typically located on driver's door jamb, or consult your owner's manual. The HNS7K1 only covers D22 generation—if you have D40 or D23, you need a different harness model. Contact us with your Navara details if uncertain about generation.
Q: What is Patrol GU7 Y61 designation?
A: The GU7 Y61 designation refers to specific Nissan Patrol series. Y61 is the chassis code for Patrol models produced from 1997-2016 (known as GU series in Australia). GU7 refers to the seventh update within the GU series, typically covering 2010+ models. The HNS7K1 supports both Patrol 1997-2009 Dash 1 and Patrol GU7 Y61 2010+ with Dash 1 Dash 2 configurations. Verify your Patrol series (GU) and dash configuration before purchase. Contact us with your Patrol details if uncertain about series designation.
Q: What aftermarket head units are compatible with this harness?
A: Compatible with most aftermarket single-DIN and double-DIN head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO wiring configurations. This is a basic wiring harness providing power, speaker connections, and antenna adapter without steering wheel control integration or camera support, so any standard head unit will work for basic audio functionality. Modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation typically use standard wiring and will connect to this harness. Verify head unit has standard wiring harness connection (most modern units do). You'll also need appropriate Nissan dash kit matching your specific vehicle model, year, and dash configuration for physical mounting.
Q: Can I install this myself or should I hire a professional?
A: The harness is plug-and-play designed for simplified installation. Complete installation requires: Nissan dashboard removal (complexity varies by model—Maxima, Micra, Navara D22, Pathfinder, Patrol, and X-Trail each have different procedures and dash configurations), disconnecting factory head unit, connecting HNS7K1 harness to factory wiring and aftermarket head unit, mounting new unit in vehicle-specific dash kit, connecting antenna adapter, and testing audio operation. If you have car audio installation experience and proper tools (trim removal tools, panel tools), DIY installation is feasible—allow 2-3 hours depending on model. If unfamiliar with vehicle dashboard disassembly, professional installation recommended (typically $150-250) to ensure proper connections and avoid damage to dashboard trim or factory wiring.
