CAC F9SZ24K2 9" Fascia Kit - Suzuki Swift 2012-2017 Dash 2 with Camera Retention

Modernize your Swift Dash 2 with a 9" touchscreen while keeping your reverse camera and factory USB—engineered for camera-equipped models.

Product Overview

The CAC F9SZ24K2 is a precision-engineered 9-inch fascia kit designed specifically for 2012-2017 Suzuki Swift models with Dash 2 configuration. This advanced installation solution enables seamless upgrades from factory headunits to modern 9" touchscreen systems while retaining critical features including steering wheel controls, factory reverse camera functionality on selected models, factory antenna connection, and factory USB port on selected models. Compatible with Alpine, Pioneer, Kenwood, and Nakamichi aftermarket headunits, the kit features plug-and-play installation using factory wiring points with integrated steering wheel control interface, camera retention circuitry, and USB retention wiring. Engineered to match factory dashboard specifications for the fourth-generation Swift's Dash 2 layout, this fascia delivers OEM-quality fitment with comprehensive feature retention for professional workshops and experienced DIY installers looking to add modern connectivity without sacrificing convenience or safety features.

Key Specifications

• Fits universal trapezoid 9-inch aftermarket headunits
• Includes steering wheel control interface harness
• Includes factory reverse camera retention adapter (selected models)
• Includes factory radio antenna adapter
• Includes USB adapter for factory USB retention (selected models)
• Compatible with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems
• Fits Suzuki Swift 2012-2017 with Dash 2 configuration only
• Factory camera retention on selected models (verify your specific vehicle configuration)
• Factory USB retention on selected models (verify your specific vehicle configuration)
• Plug-and-play installation with factory connectors
• Compatible with standard factory audio systems
• Fourth generation Swift (FZ/NZ series)

Features & Benefits

Factory Reverse Camera Retention (Selected Models): Dedicated camera retention adapter maintains your existing backup camera functionality with automatic video switching when you shift into reverse on compatible trim levels, essential for tight car park manoeuvres and parallel parking without adding aftermarket camera solutions or losing the safety feature you rely on daily.

Factory USB Port Retention (Selected Models): Advanced wiring maintains your factory USB port functionality on compatible trim levels, allowing you to charge devices and maintain USB connectivity through the original dashboard location while using your new headunit's USB for CarPlay/Android Auto, giving you multiple USB options for passengers and devices.

Complete Steering Wheel Control Retention: Integrated SWC interface preserves all factory steering wheel buttons—volume adjustment, track skip, source selection, and phone controls—allowing you to control your new headunit safely without taking hands off the wheel during city commuting or highway driving.

Factory Antenna Integration: Included antenna adapter maintains your factory AM/FM antenna connection, ensuring proper radio reception across metropolitan and regional areas without signal loss or the need for aftermarket antenna solutions that compromise your Swift's clean exterior appearance.

Plug-and-Play Installation Harness: Pre-wired connectors match factory plugs exactly with additional circuitry for camera and USB retention on compatible models, eliminating wire cutting, splicing, or electrical modifications that could void vehicle warranty or create future reliability issues during ownership.

OEM-Quality Dashboard Integration: Precision-molded fascia matches factory dashboard contours, panel gaps, and finish texture specifically for Dash 2 configuration, ensuring seamless visual integration that maintains your Swift's sporty interior quality with support for advanced headunit features including larger touchscreen displays.

Technical Specs

• Screen Accommodation: Universal trapezoid 9-inch headunit format
• Steering Wheel Control: Integrated interface harness (feature retention depends on headunit model)
• Camera Retention: Factory reverse camera retention on selected models with automatic switching
• USB Retention: Factory USB port functionality maintained on selected models
• Audio System: Compatible with factory standard audio systems
• Antenna Connection: Factory radio antenna adapter included
• Dashboard Configuration: Dash 2 only (not compatible with Dash 1 configuration)
• Installation Method: Plug-and-play using factory connectors
• Compatible Headunit Models: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Canbus/Android systems; universal aftermarket Android stereos
• Vehicle Application: 2012-2017 Suzuki Swift with Dash 2 configuration (camera and USB retention on selected models)
• Model Generation: Fourth generation Swift (FZ/NZ series)

Frequently Asked Questions

How do I know if I have Dash 2 configuration?

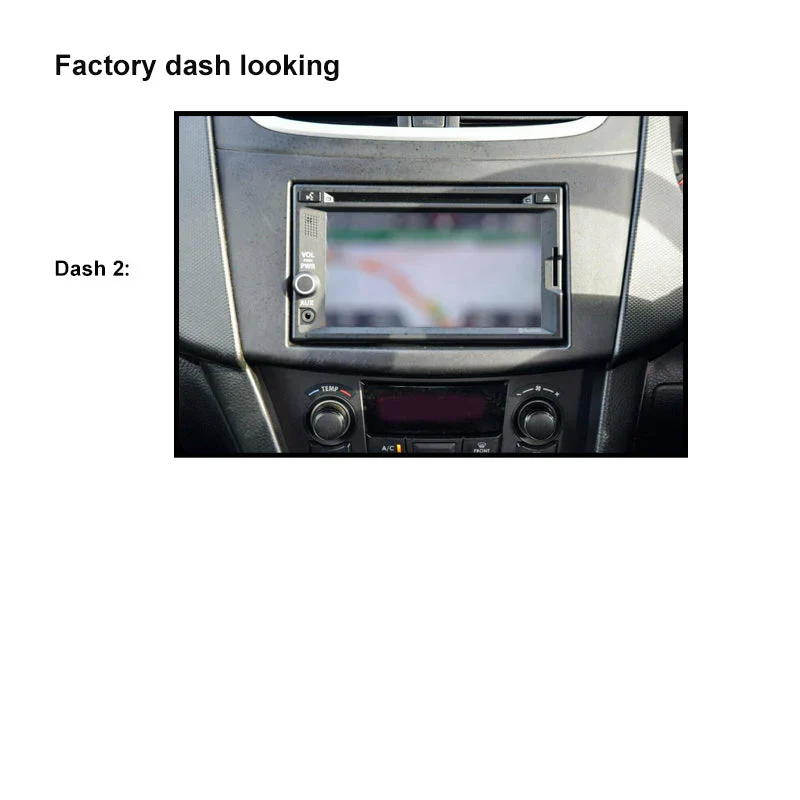

Dash 2 refers to a specific factory dashboard layout used in certain 2012-2017 Swift trim levels. Check your vehicle against the provided compatibility photos showing the Dash 2 configuration, or contact us with your VIN to confirm your dashboard type before ordering. This kit is NOT compatible with Dash 1.

Will the reverse camera and USB port work on my Swift model?

Camera and USB retention are available on selected Swift models depending on factory configuration. The kit includes the necessary adapters, but compatibility depends on your specific trim level and factory equipment. Contact us with your VIN to confirm camera and USB retention capability before ordering.

What's the difference between this kit and the F9SZ24K1 for Dash 1?

The F9SZ24K2 is for Dash 2 configuration and includes reverse camera retention on selected models, while F9SZ24K1 is for Dash 1 configuration without camera retention. Both offer USB retention on selected models. Verify your dashboard configuration before ordering.

Can I install this kit myself or should I use a professional?

The plug-and-play design allows experienced DIY installers with basic automotive electrical knowledge to complete installation. However, verifying camera and USB functionality on selected models requires additional testing. Professional installation is recommended if you're unfamiliar with car audio installation or want warranty protection.

Which 9-inch headunit should I choose for this fascia?

The kit works with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and quality Nakamichi or Android-based units. Choose based on your feature priorities—wireless CarPlay/Android Auto, screen resolution, built-in navigation, DAB+ radio, or budget—as all compatible units will integrate properly with the fascia.

Compatible With / Goes Well With

Compatible Vehicles:

• Suzuki Swift 2012-2017 with Dash 2 configuration only
• Fourth generation Swift (FZ/NZ series)
• Camera retention available on selected models (verify before purchase)
• USB retention available on selected models (verify before purchase)

Compatible Headunits:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android-based systems with Canbus integration
• Universal aftermarket 9" trapezoid Android stereos

Recommended Accessories:

• Panel removal tools for dashboard trim
• Wire harness electrical tape
• Multimeter for camera and USB circuit verification
• Video signal tester for camera validation
• Trim tool set for safe removal

Goes Well With:

• Aftermarket reverse cameras (if factory camera not equipped)
• USB charging cables for passenger use
• GPS antenna boosters for improved navigation
• DAB+ digital radio tuners
• Reversing sensors for enhanced parking safety

Caution: This kit is ONLY compatible with Dash 2 configuration. Verify your Swift's dashboard layout against compatibility photos before purchase. Camera and USB retention capability depends on your specific trim level—contact us to verify if these features are essential for your installation.
