CAC F9SR7K1 9" Fascia Kit - Subaru Liberty/Outback 2015-2020 Standard System

Modernize your fifth/sixth-generation Liberty or Outback with a 9" touchscreen—engineered for 2015-2020 models with standard audio systems.

Product Overview

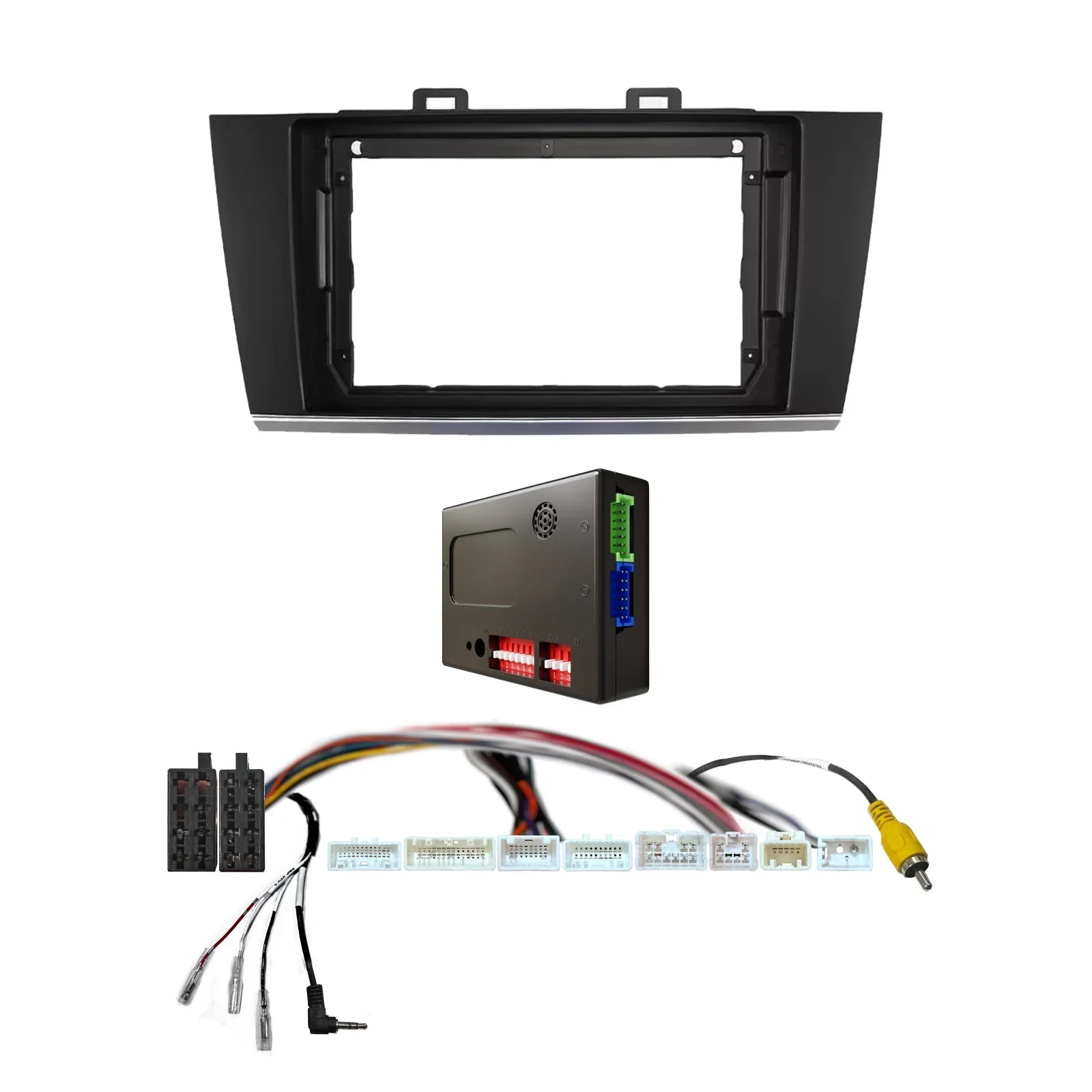

The CAC F9SR7K1 is a precision-engineered 9-inch fascia kit designed specifically for 2015-2020 Subaru Liberty and Outback models equipped with factory standard audio systems. This complete installation solution enables seamless upgrades from factory headunits to modern 9" touchscreen systems while retaining critical features including steering wheel controls and reverse camera functionality. Compatible with Alpine, Pioneer, Kenwood, and Nakamichi aftermarket headunits, the kit features plug-and-play installation using factory wiring points with integrated steering wheel control interface and camera retention circuitry. Engineered for both Dash 1 and Dash 2 configurations across multiple model years, this fascia delivers OEM-quality fitment with straightforward installation for professional workshops and experienced DIY installers looking to add modern connectivity features like Apple CarPlay, Android Auto, and high-resolution displays to their newer-generation Subaru.

Key Specifications

• Fits universal trapezoid 9-inch aftermarket headunits
• Compatible with factory standard audio systems (non-Harman Kardon)
• Includes steering wheel control interface harness
• Retains factory reverse camera input with automatic switching
• Includes factory radio antenna adapter
• Compatible with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems
• Fits Subaru Liberty 2015-2017 (Dash 1 & 2, Standard system with rear camera)
• Fits Subaru Liberty 2018-2020 (Dash 1 & 2, Standard system with rear camera)
• Fits Subaru Outback 2015-2017 (Dash 1 & 2, Standard system with rear camera)
• Fits Subaru Outback 2018-2020 (Dash 1 & 2, Standard system with rear camera)
• Factory USB retention not supported
• Plug-and-play installation with factory connectors

Features & Benefits

Standard Audio System Integration: Purpose-built wiring harness maintains compatibility with factory standard speaker systems, ensuring proper impedance matching and signal flow for optimal audio performance from your upgraded headunit without the complexity of premium audio integration.

Complete Steering Wheel Control Retention: Integrated SWC interface preserves all factory steering wheel buttons—volume adjustment, track skip, source selection, and voice commands—allowing you to control your new headunit safely without taking hands off the wheel during highway cruising or navigating busy city traffic.

Factory Reverse Camera Compatibility: Dedicated camera retention harness maintains your existing backup camera functionality with automatic video switching when you shift into reverse, essential for tight car park manoeuvres, parallel parking, and safe reversing without adding aftermarket camera solutions.

Plug-and-Play Installation Harness: Pre-wired connectors match factory plugs exactly, eliminating wire cutting, splicing, or electrical modifications that could void vehicle warranty or create future reliability issues during ownership, making installation cleaner and faster.

OEM-Quality Dashboard Integration: Precision-molded fascia matches factory dashboard contours, panel gaps, and finish texture for seamless visual integration that maintains your Liberty or Outback's interior quality rather than the obvious aftermarket appearance of universal mounting solutions.

Modern Connectivity Upgrade: Transform your fifth or sixth-generation Subaru's entertainment system by adding wireless CarPlay, Android Auto, high-resolution touchscreen displays, Bluetooth streaming, and modern navigation capabilities that enhance daily driving and long-distance touring comfort.

Technical Specs

• Screen Accommodation: Universal trapezoid 9-inch headunit format
• Steering Wheel Control: Integrated interface harness (feature retention depends on headunit model)
• Audio System: Compatible with factory standard audio systems only (not Harman Kardon)
• Reverse Camera: Factory camera retention included with automatic switching
• Antenna Connection: Factory radio antenna adapter included
• Dashboard Configuration: Dash 1 and Dash 2 fitments (model-specific, see compatibility list)
• Installation Method: Plug-and-play using factory connectors
• USB Retention: Factory USB not compatible (aftermarket headunit USB available)
• Compatible Headunit Models: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Canbus/Android systems; universal aftermarket Android stereos
• Vehicle Application: 2015-2020 Subaru Liberty and Outback (Standard audio system with factory rear camera only)
• Model Generation: Fifth generation Liberty (2015-2017), Sixth generation Liberty (2018-2020), Sixth generation Outback (2015-2020)

Frequently Asked Questions

Does this work with Harman Kardon premium audio systems?

No, this kit is specifically designed for Subaru Liberty and Outback models equipped with factory standard audio systems. If your vehicle has the Harman Kardon premium system, you'll need a different fascia kit with amplifier integration wiring.

Will I lose any factory features with this upgrade?

You'll retain steering wheel controls and reverse camera functionality with automatic switching. The factory USB port is not compatible and you'll use the new headunit's USB connection instead. Feature retention may vary depending on which aftermarket headunit model you choose.

How do I know if I have Dash 1 or Dash 2 configuration?

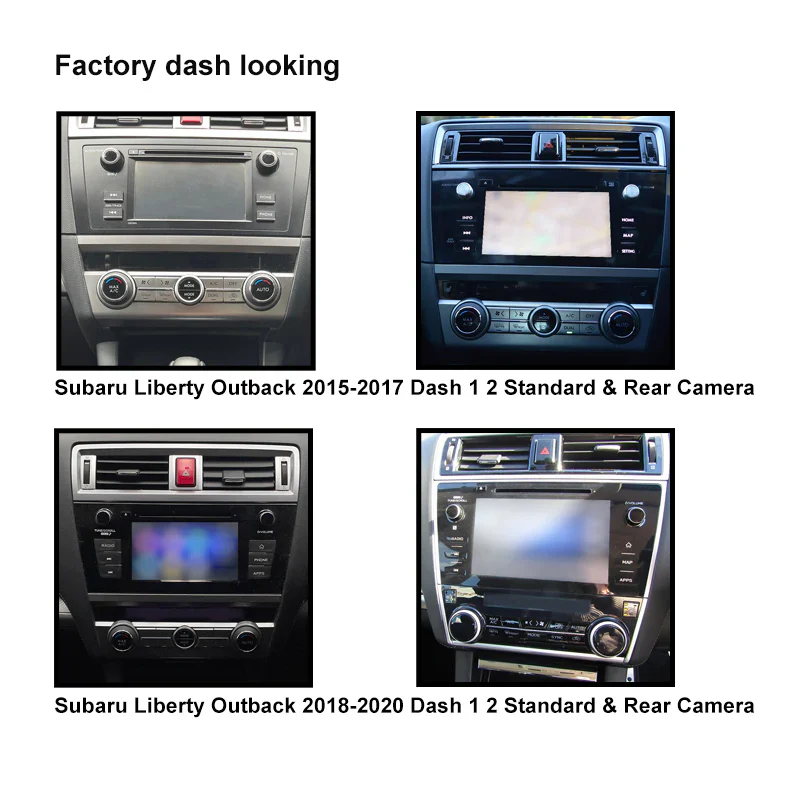

Dash 1 and Dash 2 refer to different factory dashboard layouts used across trim levels and model years. Check your vehicle's dashboard configuration against the provided compatibility photos or contact us with your VIN for confirmation before ordering.

What's the difference between this kit and the F9SR6K1 for older models?

The F9SR7K1 is for 2015-2020 models with factory rear cameras, while F9SR6K1 is for 2009-2014 models without camera retention. These are different vehicle generations with different dashboard designs and wiring requirements. Verify your model year before ordering.

Can I install this kit myself or should I use a professional?

The plug-and-play design allows experienced DIY installers with basic automotive electrical knowledge to complete installation. However, professional installation is recommended to ensure proper steering wheel control programming, camera integration verification, and to maintain any existing warranty coverage.

Compatible With / Goes Well With

Compatible Vehicles (Standard Audio Systems Only):

• Subaru Liberty 2015-2017 (Dash 1 & 2 configurations with factory rear camera)
• Subaru Liberty 2018-2020 (Dash 1 & 2 configurations with factory rear camera)
• Subaru Outback 2015-2017 (Dash 1 & 2 configurations with factory rear camera)
• Subaru Outback 2018-2020 (Dash 1 & 2 configurations with factory rear camera)

Compatible Headunits:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android-based systems with Canbus integration
• Universal aftermarket 9" trapezoid Android stereos

Installation Accessories:

• Panel removal tools for dashboard trim
• Wire harness electrical tape
• Multimeter for verification testing
• Trim tool set for safe removal

Goes Well With:

• Steering wheel control programming tools
• GPS antenna boosters for improved navigation
• DAB+ digital radio tuners
• Reversing sensors for enhanced parking safety

Caution: This kit is only compatible with standard audio systems. Verify your vehicle does NOT have Harman Kardon premium audio and confirm Dash 1 or Dash 2 configuration using compatibility photos before purchase.
