CAC F9SR4K2 9" Fascia Kit - Subaru WRX/Forester/Impreza/XV Harman Kardon

Upgrade your Subaru's infotainment without compromising factory features—this 9" fascia kit delivers seamless integration with your Harman Kardon system.

Product Overview

The CAC F9SR4K2 is a precision-engineered 9-inch fascia kit designed specifically for 2015-2021 Subaru models equipped with factory Harman Kardon audio systems. This complete installation solution allows you to upgrade to a modern 9" touchscreen headunit while retaining critical factory features including steering wheel controls, reverse camera functionality, and your premium Harman Kardon amplifier. Compatible with Alpine, Pioneer, Kenwood, and Nakamichi aftermarket headunits, the kit features plug-and-play installation using factory wiring points. Engineered for Dash 1 and Dash 2 configurations across Forester, WRX, Impreza, XV, and Levorg models, this fascia delivers OEM-quality fitment with straightforward installation for professional workshops and experienced DIY installers.

Key Specifications

• Fits universal trapezoid 9-inch aftermarket headunits
• Compatible with factory Harman Kardon amplified audio systems
• Includes steering wheel control interface harness
• Retains factory reverse camera input
• Includes factory radio antenna adapter
• Compatible with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems
• Fits Subaru Forester 2015-2018 (Dash 2, Harman Kardon)
• Fits Subaru Levorg 2016-2020 (Dash 2, Harman Kardon)
• Fits Subaru Impreza 2015-2016 (Dash 2, Harman Kardon)
• Fits Subaru WRX 2015-2021 (Dash 1 & 2, Harman Kardon)
• Fits Subaru XV 2016-2017 (Dash 2, Harman Kardon)
• Factory USB retention not supported

Features & Benefits

Harman Kardon System Integration: Purpose-built wiring interfaces maintain full functionality of your factory premium amplifier and speaker configuration, ensuring your upgraded headunit delivers audio through the high-quality system you paid for without signal loss or impedance mismatch.

Complete Steering Wheel Control Retention: Integrated SWC harness preserves all factory steering wheel buttons—volume, track skip, source selection, and voice commands—allowing you to control your new headunit safely without taking hands off the wheel during highway cruising or city driving.

Factory Reverse Camera Compatibility: Dedicated camera input maintains your existing backup camera functionality with automatic switching when you shift into reverse, critical for tight car park manoeuvres and trailer hitching without adding aftermarket camera solutions.

Plug-and-Play Installation Harness: Pre-wired connectors match factory plugs exactly, eliminating wire cutting, splicing, or electrical modifications that could void vehicle warranty or create future reliability issues during ownership.

OEM-Quality Dashboard Integration: Precision-molded fascia matches factory dashboard contours, gaps, and finish texture for seamless visual integration that maintains your Subaru's interior quality rather than the obvious aftermarket appearance of universal mounting solutions.

Wide Headunit Compatibility: Supports leading 9" aftermarket units from Alpine, Pioneer, Kenwood, and Nakamichi, plus quality Android-based systems, giving you flexibility to choose features like wireless CarPlay, high-resolution displays, or advanced DSP processing based on your preferences and budget.

Technical Specs

• Screen Accommodation: Universal trapezoid 9-inch headunit format
• Steering Wheel Control: Integrated interface harness (feature retention depends on headunit model)
• Audio System: Compatible with factory Harman Kardon amplified systems only
• Reverse Camera: Factory camera retention included
• Antenna Connection: Factory radio antenna adapter included
• Dashboard Configuration: Dash 1 and Dash 2 fitments (model-specific, see compatibility list)
• Installation Method: Plug-and-play using factory connectors
• USB Retention: Factory USB not compatible (aftermarket headunit USB available)
• Compatible Headunit Models: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Canbus/Android systems; universal aftermarket Android stereos
• Vehicle Application: 2015-2021 Subaru Forester, WRX, Impreza, XV, Levorg (Harman Kardon equipped only)

Frequently Asked Questions

Does this fit my Subaru if it doesn't have Harman Kardon?

No, this kit is specifically engineered for Subaru models equipped with the factory Harman Kardon premium audio system. Non-Harman Kardon vehicles require different fascia and wiring solutions due to amplifier integration differences.

Will I lose any factory features with this kit?

You'll retain steering wheel controls, reverse camera, and Harman Kardon amplifier functionality. The factory USB port is not compatible and you'll use the new headunit's USB instead. Feature retention may vary depending on which aftermarket headunit you choose.

What's the difference between Dash 1 and Dash 2?

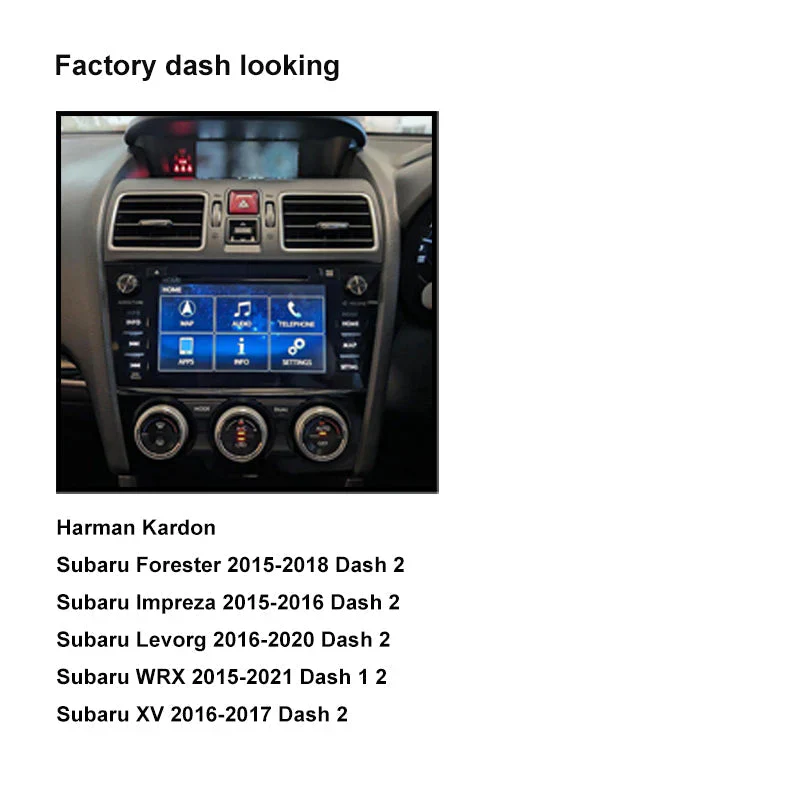

Dash 1 and Dash 2 refer to different factory dashboard configurations used across model years and variants. Check your vehicle's dashboard layout against the provided compatibility photos or contact us with your VIN for confirmation before ordering.

Can I install this myself or do I need a professional?

The plug-and-play design allows experienced DIY installers with basic automotive electrical knowledge to complete installation. However, professional installation is recommended to ensure proper Harman Kardon system integration, steering wheel control programming, and warranty protection.

Which 9-inch headunit should I choose for this fascia?

The kit works with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and quality Nakamichi or Android-based units. Choose based on your feature priorities—wireless CarPlay/Android Auto, DSP processing, screen resolution, or budget—as all compatible units will integrate properly with the fascia and factory systems.

Compatible With / Goes Well With

Compatible Vehicles (Harman Kardon Systems Only):

• Subaru Forester 2015-2018 (Dash 2 configuration)
• Subaru Levorg 2016-2020 (Dash 2 configuration)
• Subaru Impreza 2015-2016 (Dash 2 configuration)
• Subaru WRX 2015-2021 (Dash 1 & Dash 2 configurations)
• Subaru XV 2016-2017 (Dash 2 configuration)

Compatible Headunits:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android-based systems with Canbus integration
• Universal aftermarket 9" trapezoid Android stereos

Installation Accessories:

• Panel removal tools for dashboard trim
• Wire harness electrical tape
• Multimeter for verification testing

Caution: Verify your specific vehicle has the Harman Kardon system and confirm Dash 1 or Dash 2 configuration using compatibility photos before purchase. Non-Harman Kardon vehicles are not compatible.
