CAC F9MT4K2 – 9" Eclipse Cross Fascia Kit (Dash 2 + 360° Camera)

Premium retention with full 360° camera system for your Eclipse Cross.

Product Overview

The Car Audio Connect F9MT4K2 fascia kit is engineered specifically for 2017-2020 Mitsubishi Eclipse Cross models equipped with Dash 2 configuration and factory 360-degree camera system. This advanced installation solution delivers seamless integration between your factory dash and modern 9-inch trapezoid headunits while preserving all premium safety and convenience features including steering wheel controls, the complete 360° multi-camera view system, standard reverse camera, and USB connectivity that premium-spec Eclipse Cross models were fitted with in top-tier trim levels like Exceed and LS.

Designed for plug-and-play installation with comprehensive feature retention, this kit is purpose-engineered for the Dash 2 layout found in premium automatic climate control equipped Eclipse Cross models with factory 360° camera arrays. The included comprehensive retention package maintains thumb-operated steering wheel controls during urban commuting, the complete 360° camera system for parking in tight city spaces and navigating cramped shopping centre car parks, standard reverse camera functionality, and USB connectivity without additional aftermarket cables. The dual camera retention system independently maintains both standard reverse camera and the complete 360° surround-view system, allowing compatible aftermarket headunits to switch between views or display the full top-down composite exactly as the factory headunit did. All integration harnesses connect directly to your premium Eclipse Cross's factory wiring without cutting or splicing circuits, maintaining electrical integrity and advanced safety features. Compatible with premium brands including Alpine, Pioneer, Kenwood, and Nakamichi, this fascia brings Apple CarPlay, Android Auto, and modern navigation to your premium-specification Eclipse Cross while maintaining the sophisticated camera systems that define high-end models.

Important Installation Note: Some aftermarket headunits require vertical rear DIN mounting due to the Eclipse Cross's dash depth. The FDINM2 mounting bracket (sold separately) may be required for certain headunit models - consult product specifications or contact us for compatibility confirmation.

Key Specifications

• Vehicle compatibility: Mitsubishi Eclipse Cross 2017-2020 (YA chassis, Dash 2 configuration with factory 360° camera)
• Fascia size: 9-inch trapezoid aperture (universal 9" headunit compatible)
• Chassis code: YA Eclipse Cross series (2017-2020 first generation)

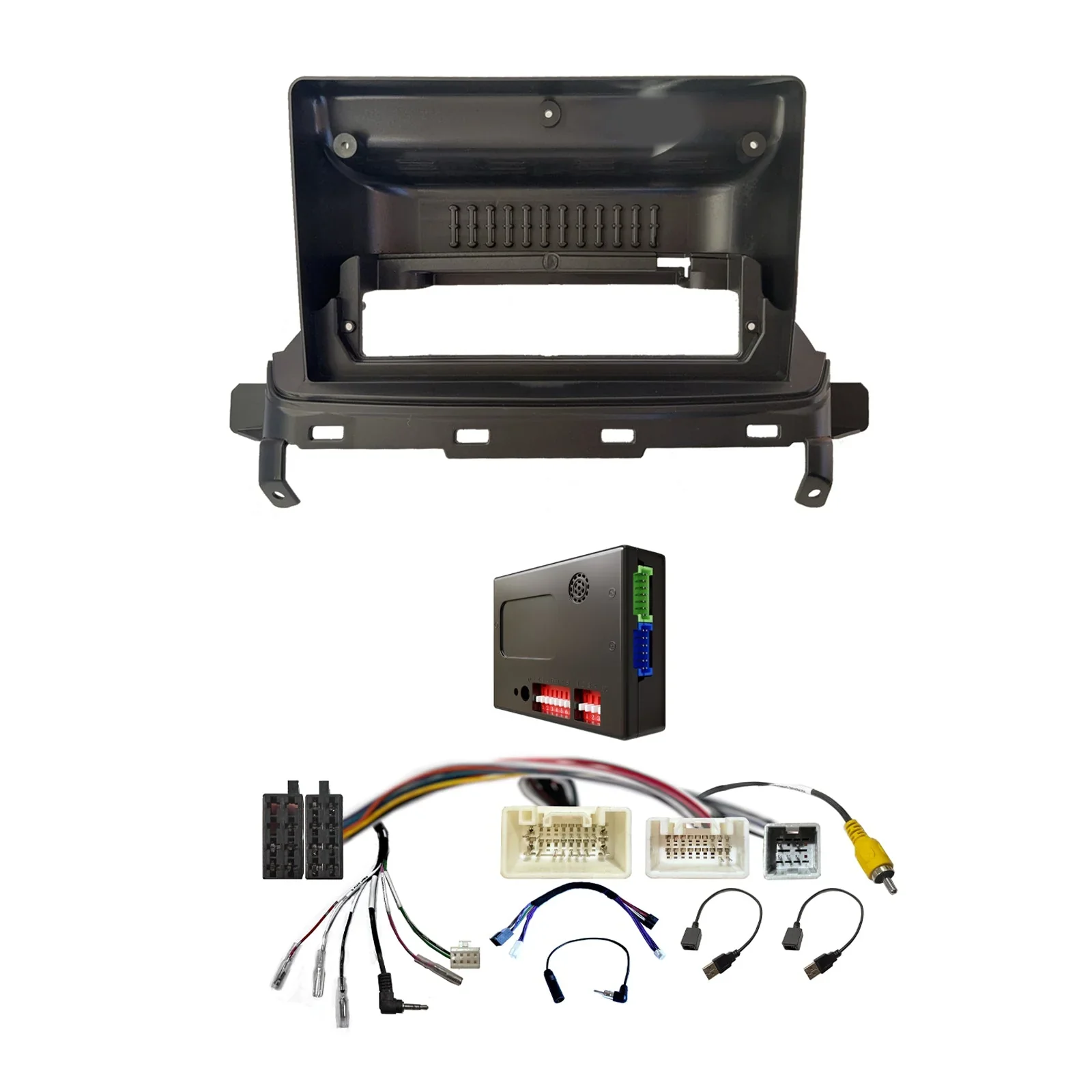

• Included components: Fascia panel, steering wheel control harness, 360° camera retention adapter, factory camera retention adapter, USB retention adapter

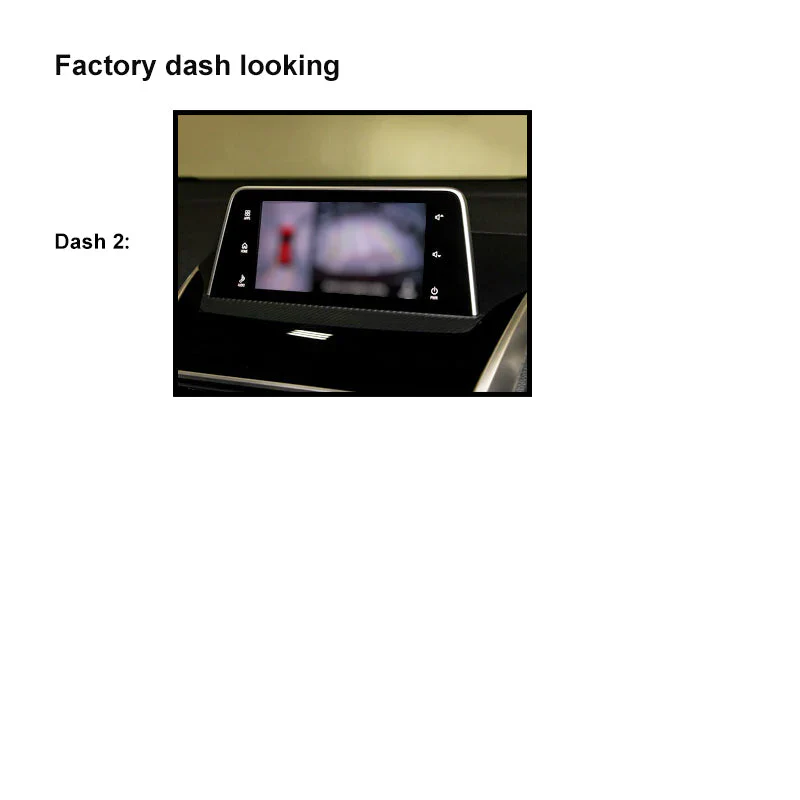

• Dash configuration: Dash 2 only (verify against compatibility photo)
• Camera system: Factory 360° camera system required for full functionality (premium trim specification)
• Installation method: Plug-and-play with factory wiring integration, comprehensive feature retention including dual camera system
• Headunit compatibility: Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, aftermarket Android headunits
• Mounting requirement: Some headunits require FDINM2 vertical mounting bracket (sold separately)
• Factory touch panel: Not compatible with factory touch panel models

Features & Benefits

Complete 360° Camera System Retention – The specialized dual camera retention adapter maintains full functionality of your premium Eclipse Cross's factory 360-degree multi-camera system, preserving the top-down composite view essential for parking in tight urban spaces, navigating narrow residential streets, positioning in cramped shopping centre car parks, or maneuvering in multi-storey parking structures where comprehensive visibility of all four corners prevents costly scrapes and door dings.

Dual Camera Input Support – Independently retains both standard reverse camera and the complete 360° camera array, allowing compatible aftermarket headunits to switch between views or display the full surround-view system. Premium headunits with dual camera inputs can maintain both the traditional reverse camera view and the sophisticated 360° top-down perspective that premium Eclipse Cross owners rely on during urban driving.

Premium Trim Level Specific – Purpose-engineered for top-specification 2017-2020 Eclipse Cross models equipped with the advanced 360° camera option, typically found in Exceed or LS Premium trim levels. This kit preserves the premium safety technology that distinguishes these models from standard specifications and provides essential confidence during urban parking challenges.

Dash 2 Configuration Specific – Engineered exclusively for the Dash 2 layout found in certain premium Eclipse Cross specifications. This configuration-specific design ensures precise fitment around the automatic climate control interface and surrounding dash elements unique to Dash 2, eliminating the fitment problems that occur when using fascia kits designed for other dash types.

Preserves Factory Steering Wheel Controls – The integrated SWC harness maintains full functionality of your Eclipse Cross's steering wheel buttons, keeping volume, track skip, voice command, and phone controls exactly where your hands expect them during urban commuting, school runs, or navigating busy city traffic where maintaining steering control and attention is essential.

Factory USB Port Integration – The supplied USB retention adapter preserves your existing USB charging and data connection, allowing passengers to maintain device connectivity without losing factory mounting locations or requiring additional aftermarket cables cluttering the modern, refined interior of this style-focused premium crossover.

Technical Specs

• Fascia panel material: ABS plastic with UV-resistant finish
• Headunit aperture: 9-inch trapezoid (universal 9" mounting pattern)
• Wiring harnesses included: ISO connector format with YA Eclipse Cross-specific pinout
• SWC protocol: Resistive ladder network (compatible with PAC, Aerpro, and most aftermarket interfaces)
• Camera inputs: Dual composite video retention (360° system + standard reverse camera, NTSC/PAL compatible)
• Camera resolution support: Standard definition composite (factory specification)
• USB retention: Factory USB data and charging retention via adapter
• Harness functions: Power (constant/switched), speaker outputs (4-channel), antenna connection, SWC integration, dual camera retention (360° + reverse), USB retention
• Dash configuration: Dash 2 only (not compatible with Dash 1 or other configurations)
• Camera system: Factory 360° camera system required (premium trim specification)
• Factory touch panel: Not compatible with factory touch panel models
• Mounting requirement: FDINM2 bracket may be required for vertical rear DIN mounting (sold separately)
• Feature retention: Steering wheel controls, factory 360° camera system, factory reverse camera, factory USB port
• Installation time: Approximately 75-90 minutes for experienced installers (additional time for dual camera calibration)
• Colour: Black (matches factory Eclipse Cross premium trim)
• Weight: Approximately 1.0 kg (fascia with comprehensive retention package including dual camera adapters)

Frequently Asked Questions

Does this work with all Eclipse Cross models?

No, this kit requires Dash 2 configuration with factory 360° camera system. Not all Eclipse Cross models have 360° cameras—this premium feature is typically found only in top-tier trim levels like Exceed or LS Premium. For models without 360° cameras, use the F9MT4K1 kit instead.

What is the FDINM2 mounting bracket and do I need it?

The FDINM2 is a vertical rear DIN mounting bracket required for certain headunit models due to the Eclipse Cross's dash depth. Alpine, Pioneer, and some Android headunits may require this bracket. Check your chosen headunit's depth specifications or contact us for compatibility confirmation before ordering.

Will both reverse camera and 360° view work simultaneously?

Your aftermarket headunit must support dual camera inputs to access both views. Most modern premium 9-inch headunits offer front/rear or multi-camera switching, allowing you to toggle between standard reverse and 360° view as needed during different parking situations.

Will this work with factory touch panel models?

No, this kit is not compatible with Eclipse Cross models equipped with factory touch panel controls. Always verify your vehicle has a standard headunit configuration (not touch panel) before purchase to ensure compatibility.

How do I know if my Eclipse Cross has 360° cameras?

Check if your factory headunit displays a top-down composite "bird's eye" view when engaged. 360° camera systems typically include multiple camera feeds (front, rear, sides) that create this overhead perspective. This premium feature is usually found in Exceed or LS Premium trim levels.

Compatible With / Goes Well With

Confirmed Compatible Headunits:

• Alpine AW409S, AX809 (iLX series 9-inch systems with dual camera input and 360° support - may require FDINM2 bracket)
• Kenwood DMX80AXS (9-inch flagship multimedia with front/rear camera support and multi-camera capability)
• Pioneer DMH-AP6650BT (9-inch wireless CarPlay/Android Auto with dual camera capability - may require FDINM2 bracket)
• Nakamichi Android systems (9-inch trapezoid models with multi-camera input and 360° view support - may require FDINM2 bracket)
• Quality aftermarket 9-inch Android headunits with trapezoid mounting, SWC support, dual camera inputs, and 360° camera processing

Vehicle Compatibility:

• Mitsubishi Eclipse Cross 2017-2020 (YA chassis, first generation)
• Dash 2 configuration only (with factory 360° camera)
• Factory 360° camera system required (premium trim levels: Exceed, LS Premium)
• Standard headunit models (not factory touch panel)

Installation Accessories:

• FDINM2 vertical rear DIN mounting bracket (required for certain headunit models - sold separately)
• Trim removal tools (recommended for panel removal)
• Antenna adapter (may be required depending on headunit and factory antenna type)
• Additional SWC programming interface (if required by specific headunit brands)
• Camera calibration tools (for 360° system alignment verification post-installation)

Related Products:

• CAC F9MT4K1: For 2017-2020 Eclipse Cross Dash 1 without 360° cameras (standard specification)

Important Compatibility Note: This kit is designed exclusively for 2017-2020 first-generation Eclipse Cross models with Dash 2 configuration, standard headunit layout, and factory 360° camera system. Models without 360° cameras should use F9MT4K1. Factory touch panel models are not compatible. Later 2021+ facelift models require different fascia kits. Some headunits require the FDINM2 vertical mounting bracket (sold separately) for proper installation. Always verify your Eclipse Cross's exact model year, dash configuration, factory audio type, and camera system specification against the compatibility photo before purchase.
