CAC F9MT25K5 – 9" Triton MN Fascia Kit (GL Base Model)

Simple headunit upgrade for your base-spec MN Triton work ute.

Product Overview

The Car Audio Connect F9MT25K5 fascia kit is engineered specifically for 2009-2014 Mitsubishi Triton MN models in GL trim level, the base specification commonly used as entry-level work vehicles, fleet transport, and farm utes. This straightforward installation solution provides the physical and electrical interface needed to mount modern 9-inch trapezoid headunits in place of the factory radio system while maintaining a clean, finished appearance with the included pocket case for practical storage.

Designed as a direct-fit replacement fascia with integrated wiring harness, this kit delivers the essential components for aftermarket headunit installation without unnecessary complexity. The included wiring harness connects directly to your Triton MN GL's factory radio connector, providing power, speaker connections, and antenna feed without cutting or splicing factory circuits. The pocket case fills the remaining dash space below the headunit, offering convenient storage for work permits, service records, hand tools, or small equipment. Compatible with premium brands including Alpine, Pioneer, Kenwood, and Nakamichi, this fascia brings Bluetooth connectivity, USB playback, and modern audio features to your base-spec MN Triton while maintaining the utilitarian simplicity these reliable work vehicles are known for.

Key Specifications

• Vehicle compatibility: Mitsubishi Triton 2009-2014 MN (GL trim level only)
• Fascia size: 9-inch trapezoid aperture (universal 9" headunit compatible)
• Chassis code: MN Triton series (2009-2014 model years)

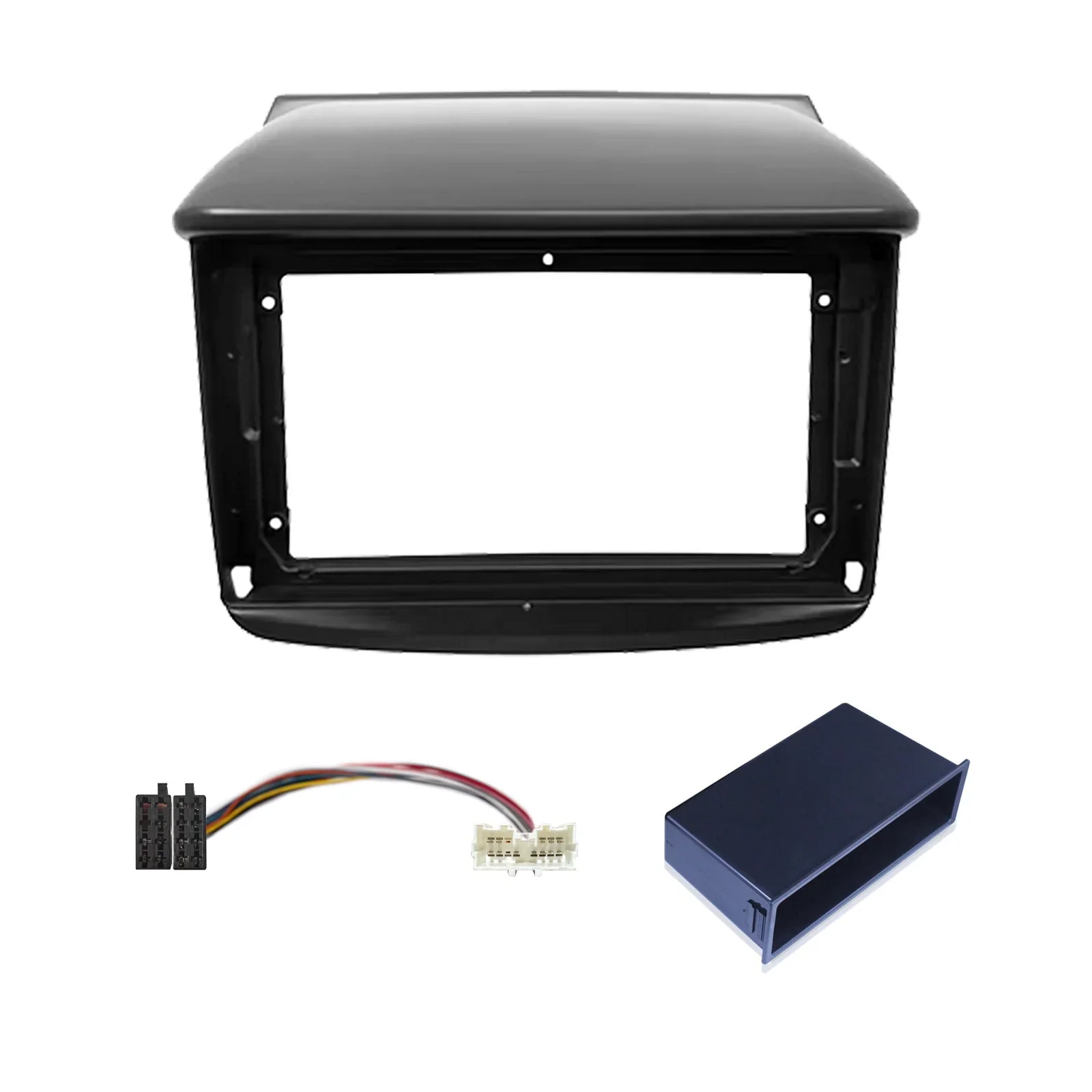

• Included components: Fascia panel, wiring harness, pocket case
• Trim level compatibility: GL only (base specification, entry-level work ute)
• Installation method: Direct replacement with factory wiring connection
• Headunit compatibility: Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, aftermarket Android headunits

Features & Benefits

Direct Factory Wiring Integration – The included wiring harness connects directly to your Triton MN GL's factory radio connector, providing power, speaker connections, and antenna feed without cutting or splicing factory wiring. This preserves the integrity of your vehicle's electrical system and simplifies future modifications or warranty considerations.

Practical Pocket Case Included – The integrated pocket case fills the space below the 9-inch headunit, providing functional storage for work documents, hand tools, permits, or small equipment while maintaining a clean, finished dashboard appearance. This practical addition suits the work-focused nature of base GL models used in trades, farming, and commercial applications.

GL Base Model Specific – Purpose-designed exclusively for the GL trim level, the most basic and widely-used specification in commercial and agricultural applications. This focused approach ensures precise fitment for the entry-level dash configuration without paying for unused feature retention components.

OEM-Quality Construction – Precision-molded fascia panel matches your Triton MN's interior trim profile, delivering a factory-integrated appearance that avoids the aftermarket "add-on" look. The durable ABS construction withstands the rigors of daily work use, temperature extremes, and the vibration common to light commercial vehicles.

Verified Headunit Compatibility – Tested and confirmed to work with Alpine's iLX series, Pioneer's DMH range, Kenwood's DMX flagship models, and Nakamichi's Android systems, plus quality aftermarket 9-inch Android headunits using the trapezoid form factor. Brings modern connectivity including Bluetooth hands-free, USB playback, and auxiliary input to your work vehicle without complexity.

Cost-Effective Upgrade Path – Simplified specification without unused steering wheel control or camera retention components makes this kit the most cost-effective upgrade solution for base GL models that weren't factory-equipped with these features, keeping upgrade costs appropriate to the vehicle's specification.

Technical Specs

• Fascia panel material: ABS plastic with UV-resistant finish
• Headunit aperture: 9-inch trapezoid (universal 9" mounting pattern)
• Wiring harness: ISO connector format with MN-specific pinout
• Harness functions: Power (constant/switched), speaker outputs (4-channel), antenna connection
• Pocket case dimensions: Matches remaining dash aperture below 9" headunit
• Feature retention: Basic audio functions only (no SWC, camera, or USB retention on GL base models)
• Installation time: Approximately 30-45 minutes for experienced installers
• Colour: Black (matches factory MN base trim)
• Weight: Approximately 0.7 kg (fascia, harness, and pocket case)

Frequently Asked Questions

Does this include steering wheel control retention?

No, GL base trim Triton MN models (2009-2014) were not equipped with factory steering wheel controls from the manufacturer. This kit provides basic audio integration only, matching the original base vehicle specification and keeping costs appropriate.

What's the difference between GL and GL-R models?

GL is the base specification, while GL-R is a higher trim with additional features. This kit is designed specifically for base GL models. For GL-R models, refer to F9MT25K3 (Dash 1) or F9MT25K4 (Dash 2) depending on your dash configuration.

Can I add a reverse camera with this kit?

This kit does not include camera retention components as GL base models were not factory-equipped with reverse cameras. However, aftermarket reverse cameras can be added separately and connected directly to compatible 9-inch headunits that support camera inputs.

What is the pocket case for?

The pocket case fills the remaining dash space below the 9-inch headunit, providing practical storage while maintaining a finished appearance. It's ideal for storing work permits, tools, service records, or small equipment in easy reach during work operations.

Will my factory speakers work with new headunits?

Yes, the included wiring harness connects to your factory speaker wiring. Audio quality and volume will depend on your aftermarket headunit's amplifier output and the condition of your factory speakers, which are basic specification in GL base models.

Compatible With / Goes Well With

Confirmed Compatible Headunits:

• Alpine AW409S, AX809 (iLX series 9-inch systems)
• Kenwood DMX80AXS (9-inch flagship multimedia)
• Pioneer DMH-AP6650BT (9-inch wireless CarPlay/Android Auto)
• Nakamichi Android systems (9-inch trapezoid models)
• Quality aftermarket 9-inch Android headunits with trapezoid mounting

Vehicle Compatibility:

• Mitsubishi Triton 2009-2014 (MN series)
• GL trim level only (base specification, entry-level work ute)

Installation Accessories:

• Trim removal tools (recommended for panel removal)
• Antenna adapter (may be required depending on headunit and factory antenna type)
• Aftermarket reverse camera kit (if adding camera functionality)
• Aftermarket steering wheel control interface (if retrofitting SWC capability)

Related Products:

• CAC F9MT25K3: For MN Triton GL-R/GLX Dash 1 models
• CAC F9MT25K4: For MN Triton GL-R/GLX Dash 2 models with SWC and camera
• CAC F9MT25K1: For earlier ML Triton (2007-2009) GL/GLX base models

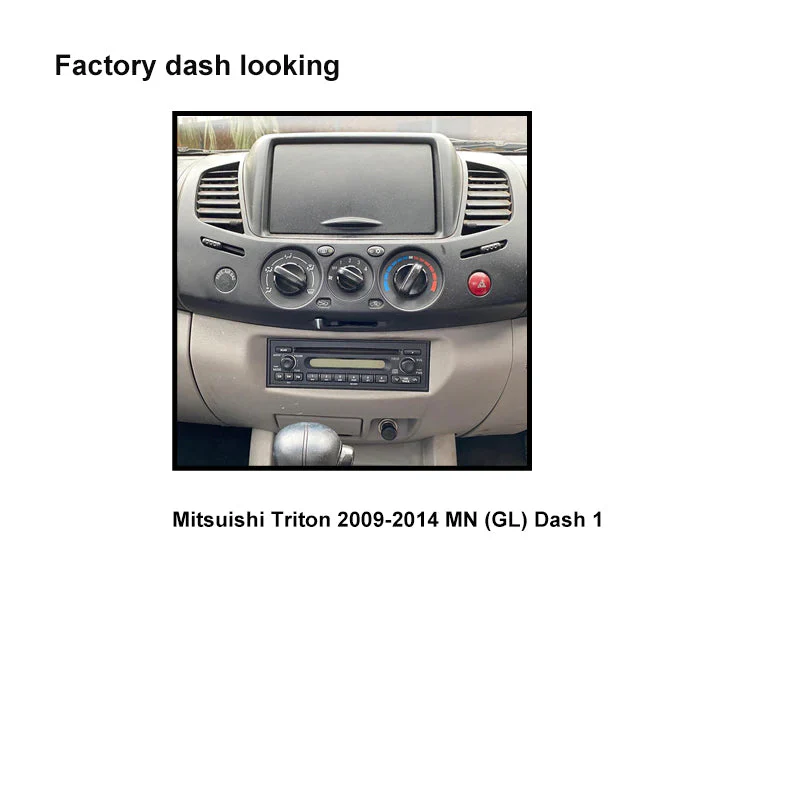

Important Compatibility Note: This kit is designed exclusively for GL base trim level. Higher specification models (GL-R, GLX, GLS, GLX-R, VR) may have different dash configurations, factory features, or audio systems requiring alternative fascia kits. Always verify your Triton MN's exact trim level against the compatibility photo before purchase.

Weight

0.7 kg (fascia, wiring harness, and pocket case)
