CAC F9MT23K2 – 9" Pajero Sport Fascia Kit (Rockford Fosgate + 360° Camera)

Upgrade your premium Pajero Sport with full 360° camera and Rockford Fosgate retention.

Product Overview

The Car Audio Connect F9MT23K2 fascia kit is engineered specifically for 2015-2019 Mitsubishi Pajero Sport models equipped with the Dash 1 configuration, Rockford Fosgate premium sound system, and factory 360-degree camera system. This advanced installation solution delivers seamless integration between your factory dash and modern 9-inch trapezoid headunits while preserving all premium safety and audio features including the complete 360° multi-camera view system that high-specification Exceed and Exceed Wagon models rely on for low-speed maneuvering and off-road obstacle navigation.

Designed for plug-and-play installation with comprehensive feature retention, this kit eliminates the complexity of maintaining advanced driver assistance systems and premium audio during aftermarket upgrades. The included integration harnesses connect directly to your Pajero Sport's factory wiring, preserving steering wheel controls, the complete 360° camera array, standard reverse camera, USB connectivity, and Rockford Fosgate amplifier integration without cutting or splicing factory circuits. Compatible with premium brands including Alpine, Pioneer, Kenwood, and Nakamichi, this fascia brings Apple CarPlay, Android Auto, and modern navigation to your Pajero Sport while maintaining the sophisticated camera and audio systems that define the premium trim levels.

Key Specifications

• Vehicle compatibility: Mitsubishi Pajero Sport 2015-2019 (Dash 1 with Rockford Fosgate and factory 360° camera)
• Fascia size: 9-inch trapezoid aperture (universal 9" headunit compatible)
• Chassis codes: QE Pajero Sport series (2015-2019 model years, Dash 1 configuration)

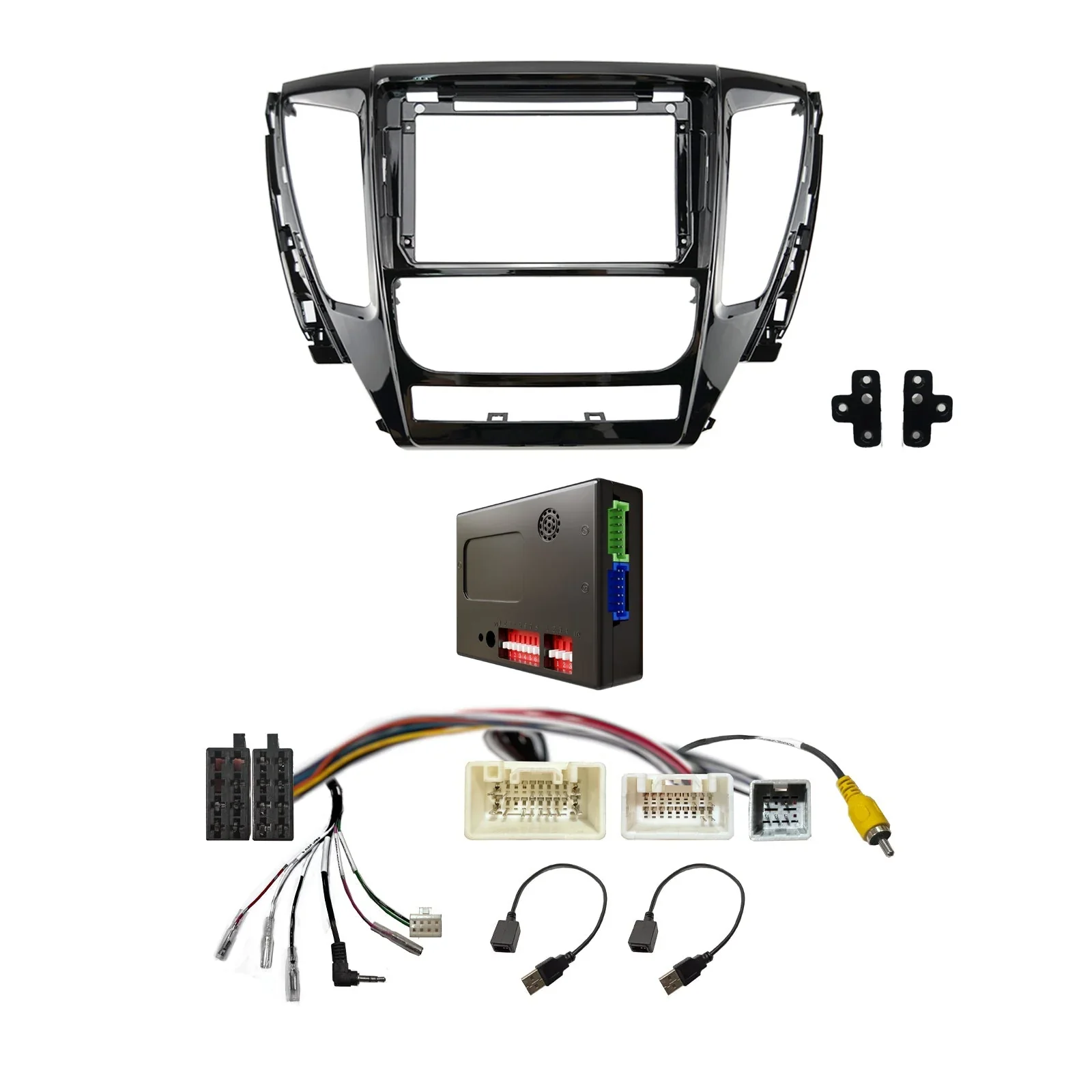

• Included components: Fascia panel, steering wheel control harness, 360° camera retention adapter, factory camera retention adapter, USB retention adapter
• Factory system compatibility: Rockford Fosgate premium audio system with 360° multi-camera system
• Installation method: Plug-and-play with factory wiring integration
• Headunit compatibility: Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, aftermarket Android headunits

Features & Benefits

Complete 360° Camera System Retention – The specialized camera retention adapter maintains full functionality of your Pajero Sport's factory 360-degree multi-camera system, preserving the top-down composite view that's essential for tight parking, navigating rocky terrain, threading through narrow trails, or positioning your vehicle during boat ramp maneuvers where bumper and side clearance visibility is critical.

Dual Camera Input Support – Independently retains both standard reverse camera and the complete 360° camera array, allowing compatible aftermarket headunits to switch between views or display the full surround-view system exactly as the factory headunit did, maintaining safety confidence during family touring or solo outback adventures.

Rockford Fosgate Audio System Compatibility – Purpose-built to integrate with Pajero Sport's premium Rockford Fosgate audio system, maintaining audio quality, amplifier functionality, and speaker-level outputs while upgrading your headunit to modern multimedia capabilities without compromising the factory sound signature that premium buyers expect.

Preserves Factory Steering Wheel Controls – The integrated SWC harness maintains full functionality of your Pajero Sport's steering wheel buttons, keeping volume, track skip, voice command, and phone controls exactly where your hands expect them during highway cruising, school runs, or weekend 4WD touring.

Factory USB Port Integration – Keep your existing USB charging and data connection active through the supplied USB adapter, allowing passengers to maintain device connectivity without losing factory mounting locations or requiring additional aftermarket cables running through the centre console.

OEM-Quality Finish – Precision-molded fascia panel matches your Pajero Sport's Dash 1 interior trim lines and texture, delivering a factory appearance that integrates seamlessly with the higher-specification interior finish found in 360° camera and Rockford Fosgate-equipped models.

Verified Headunit Compatibility – Tested and confirmed to work with Alpine's iLX series, Pioneer's DMH range, Kenwood's DMX flagship models, and Nakamichi's Android systems, plus quality aftermarket 9-inch Android headunits using the trapezoid form factor with dual camera input capability and factory amplifier integration support.

Technical Specs

• Fascia panel material: ABS plastic with UV-resistant finish
• Headunit aperture: 9-inch trapezoid (universal 9" mounting pattern)
• Wiring harnesses included: ISO connector format with vehicle-specific pinout
• SWC protocol: Resistive ladder network (compatible with PAC, Aerpro, and most aftermarket interfaces)
• Camera inputs: Dual composite video retention (360° system + standard reverse camera, NTSC/PAL compatible)
• Camera resolution support: Standard definition composite (factory specification)
• USB retention: Factory USB data and charging retention
• Audio system integration: Rockford Fosgate amplifier retention harness included
• Installation time: Approximately 60-90 minutes for experienced installers (additional time for 360° camera calibration)
• Colour: Black (matches factory Dash 1 trim)
• Weight: Approximately 0.9 kg (kit complete with dual camera adapters and amplifier harness)

Frequently Asked Questions

Does this work with all Pajero Sport Rockford Fosgate systems?

This kit is specifically designed for Dash 1 Pajero Sport models with factory 360° camera and Rockford Fosgate audio. Verify your dash configuration matches the compatibility photo and confirm your vehicle has both the 360° camera option and Rockford Fosgate system before ordering.

Will both reverse camera and 360° view work simultaneously?

Your aftermarket headunit must support dual camera inputs to access both views. Most modern 9-inch headunits offer front/rear camera switching, allowing you to toggle between standard reverse and 360° view as needed during different maneuvering situations.

Will my Rockford Fosgate amplifier still work properly?

Yes, when paired with compatible headunits that support factory amplifier integration. The included harness maintains amplifier turn-on and speaker-level outputs. Full audio quality retention depends on your chosen aftermarket headunit's amplifier integration capabilities.

Can I use this without the 360° camera system?

If your Pajero Sport has Dash 1 with Rockford Fosgate but lacks 360° cameras, the standard reverse camera retention still functions. However, consider the F9MT23K1 kit for standard audio configurations without Rockford Fosgate for more cost-effective installation.

Do I need additional harnesses for installation?

All necessary integration harnesses including dual camera adapters and Rockford Fosgate amplifier harness are included. Your chosen aftermarket headunit may require brand-specific patch leads (typically supplied with the headunit) for complete feature integration and dual camera switching.

Compatible With / Goes Well With

Confirmed Compatible Headunits:

• Alpine AW409S, AX809 (iLX series 9-inch systems with dual camera input and amplifier support)
• Kenwood DMX80AXS (9-inch flagship multimedia with front/rear camera support and amp integration)
• Pioneer DMH-AP6650BT (9-inch wireless CarPlay/Android Auto with dual camera and amplifier capability)
• Nakamichi Android systems (9-inch trapezoid models with multi-camera input and factory amp support)
• Quality aftermarket 9-inch Android headunits with trapezoid mounting, dual camera inputs, and factory amplifier integration

Vehicle Compatibility:

• Mitsubishi Pajero Sport 2015-2019 (QE series)
• Dash 1 configuration only
• Rockford Fosgate premium audio system required
• Factory 360° camera system required for full functionality

Installation Accessories:

• Trim removal tools (recommended for panel removal)
• Antenna adapter (if upgrading from factory navigation)
• Additional steering wheel control interface (if headunit requires separate SWC module)
• Camera calibration tools (for 360° system alignment verification post-installation)

Important Compatibility Note: This kit requires Dash 1 configuration with both Rockford Fosgate audio and factory 360° camera system. Always verify your Pajero Sport's specific dash configuration, audio system, and camera system against the compatibility photo. For vehicles without 360° cameras or Rockford Fosgate audio, use the appropriate alternative CAC fascia kit (F9MT23K1 for standard Dash 1).

Weight

0.9 kg (complete kit with dual camera retention adapters and amplifier integration harness)
