CAC F9MA5K1 9 Inch Fascia Kit - Mazda 2 & CX-3 2014+ Dash 1 Integration Kit
CAC F9MA5K1 9 Inch Fascia Kit - Mazda 2 & CX-3 2014+ Dash 1 Integration Kit
Complete 9-inch fascia installation kit for Mazda 2 and CX-3 with Dash 1 configuration, including OEM-style fascia panel, steering wheel control harness, radio antenna adapter, and factory USB retention for seamless aftermarket head unit integration.
Product Overview
The Car Audio Connect F9MA5K1 9 Inch Fascia Kit is a comprehensive installation solution specifically designed for Mazda 2 and Mazda CX-3 vehicles with Dash 1 configuration from 2014 onwards, providing everything needed to upgrade to a modern 9-inch aftermarket head unit with OEM-style integration and comprehensive factory feature retention. This complete kit includes a precision-molded 9-inch fascia panel that matches factory dashboard aesthetics, plus steering wheel control harness with Bluetooth button retention, radio antenna adapter, and USB adapter for factory USB port retention. Designed specifically for universal trapezoid 9-inch stereos, the F9MA5K1 works seamlessly with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket Android stereos, providing flexibility in head unit selection while maintaining professional OEM appearance. Important installation note: The back DIN requires vertical installation for compatible head units, necessitating the FDINM2 mount bracket which must be ordered separately for proper head unit mounting. The kit retains full steering wheel control functionality including the Bluetooth button for hands-free calling, allowing drivers to maintain safe, convenient access to audio functions without taking hands off the wheel. Factory USB port functionality is preserved, allowing continued use of existing USB connections for device charging and media playback without requiring additional adapters. The included factory radio antenna adapter maintains AM/FM reception quality. For vehicles equipped with factory BOSE premium audio systems, this kit is fully compatible when used with the HEXT3 adapter (ordered separately) to retain factory amplifier functionality and maintain optimal sound quality. The plug-and-play design with included harnesses and adapters means no cutting or splicing of factory wiring is required, preserving the vehicle's electrical system integrity and resale value while enabling straightforward installation. Engineered specifically for Mazda 2 and CX-3 models from 2014 onwards with Dash 1 configuration, the F9MA5K1 ensures proper fitment, connector compatibility, and signal integration for reliable operation. Feature retention will depend on the specific aftermarket radio model selected, with compatible head units providing full functionality. Professional-grade construction with high-quality materials ensures reliable operation and longevity in the demanding automotive environment.
Features & Benefits
Complete 9-Inch Integration Solution: Includes precision-molded fascia panel, steering wheel control harness with BT button retention, radio antenna adapter, and USB adapter—everything needed for professional OEM-style installation of 9-inch aftermarket head units.
OEM-Style Fascia Design: Precision-molded 9-inch fascia panel matches factory dashboard aesthetics for professional appearance that looks like it came from the factory, enhancing vehicle interior while accommodating modern large-screen head units.
Comprehensive Feature Retention: Preserves steering wheel controls including Bluetooth button, factory USB port functionality, and radio antenna for complete functionality without additional adapters or complex modifications.
Universal 9-Inch Head Unit Compatibility: Works with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other aftermarket trapezoid 9-inch stereos, providing flexibility in head unit selection (requires FDINM2 bracket for vertical DIN installation - sold separately).
BOSE System Compatible: Fully compatible with factory BOSE premium audio systems when used with HEXT3 adapter (ordered separately), maintaining optimal sound quality and factory amplifier functionality without expensive amplifier replacement.
Factory USB Port Retention: Maintains factory USB port functionality allowing continued use of existing USB connections for device charging and media playback, preserving convenience features without requiring additional USB adapters.
Plug & Play Installation: Included harnesses and adapters connect directly to factory wiring with no cutting or splicing required, preserving vehicle electrical system integrity and enabling straightforward installation for Dash 1 configuration vehicles.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Model Number | F9MA5K1 |
| Product Name | 9 Inch Fascia Kit for Mazda 2 & CX-3 Dash 1 |
| Fascia Size | 9 Inch (Universal Trapezoid) |
| Vehicle Compatibility | Mazda 2 2014+ Dash 1, Mazda CX-3 2014+ Dash 1 |
| Dash Configuration | Dash 1 |
| Kit Includes | 9" Fascia Panel, Steering Wheel Control Harness (with BT button retention), Radio Antenna Adapter, USB Adapter |
| Functions Retained | Steering Wheel Controls (including BT button), Factory USB, Factory Radio Antenna |
| BOSE Compatibility | Yes (requires HEXT3 adapter - ordered separately) |
| Compatible Head Units | Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Android Stereos, Aftermarket Android Stereos |
| Head Unit Type | Universal Trapezoid 9" Stereos |
| Installation Type | Plug & Play (No cutting or splicing required) |
| Back DIN Installation | Requires vertical install with FDINM2 mount bracket (ordered separately) |
| Feature Retention | Depends on aftermarket radio model |
| Product Code | F9MA5K1 |
Compatible With
The CAC F9MA5K1 9 Inch Fascia Kit is specifically compatible with Mazda 2 vehicles manufactured from 2014 onwards with Dash 1 configuration and Mazda CX-3 vehicles from 2014 onwards with Dash 1 configuration. Works with universal trapezoid 9-inch aftermarket head units including Alpine AW409S, Alpine AX809, Pioneer DMH-AP6650BT, Nakamichi Android stereos, and other aftermarket Android stereos with trapezoid form factor. Compatible head units require vertical back DIN installation using the FDINM2 mount bracket (ordered separately). Retains steering wheel controls including Bluetooth button, factory USB port, and factory radio antenna. For vehicles equipped with factory BOSE premium audio systems, use with HEXT3 adapter (ordered separately) to maintain factory amplifier functionality. Not suitable for Mazda 2 or CX-3 vehicles with Dash 2 configuration, other Mazda models, or standard-size (single DIN/double DIN) head units. Ideal for Mazda 2 and CX-3 owners with Dash 1 configuration upgrading to modern large-screen head units with features like Apple CarPlay, Android Auto, Bluetooth, navigation, or enhanced audio capabilities while maintaining factory system integration and OEM appearance.
Frequently Asked Questions

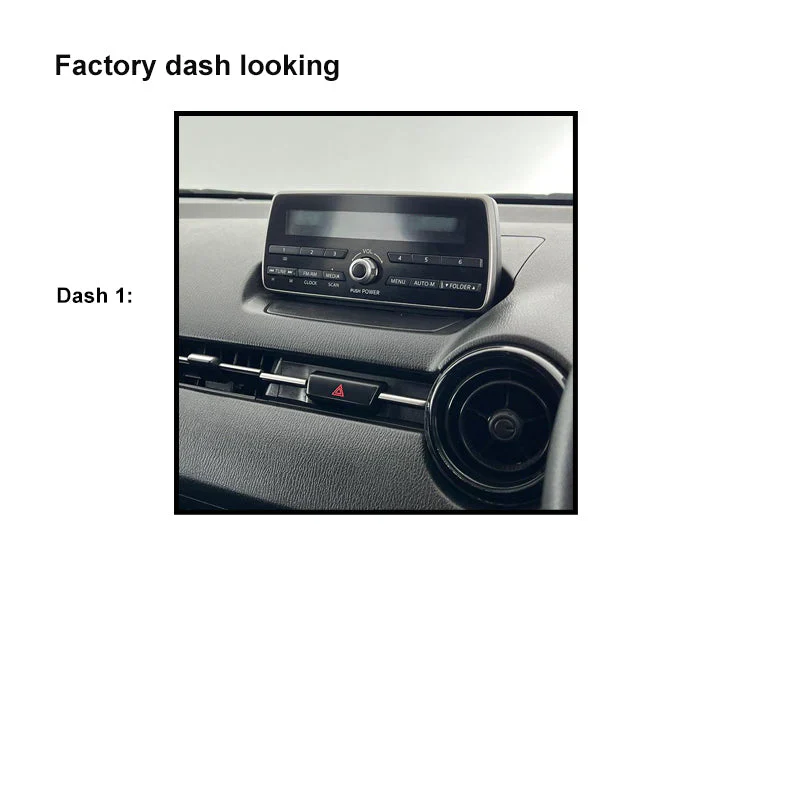

What is Dash 1 configuration and how do I know if my vehicle has it?
Dash 1 refers to the first-generation dashboard design used in Mazda 2 (2014+) and CX-3 (2014+) models. This is different from Dash 2 configuration. If you're unsure about your vehicle's dash configuration, check the original fascia opening size or consult with a Car Audio Connect specialist to confirm compatibility before purchase.
Do I need any additional components for installation?
Yes, compatible head units (Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi, and aftermarket Android stereos) require vertical back DIN installation using the FDINM2 mount bracket, which must be ordered separately. Additionally, vehicles with BOSE systems require the HEXT3 adapter (ordered separately) for factory amplifier retention.
Will this kit work with my factory BOSE system?
Yes, the F9MA5K1 is fully compatible with factory BOSE premium audio systems when used with the HEXT3 adapter, which must be ordered separately. The combination maintains factory amplifier functionality and optimal sound quality without requiring amplifier replacement.
What is the difference between Dash 1 (F9MA5K1) and Dash 2 (F9MA5K2) fascia kits?
The F9MA5K1 is designed for Dash 1 configuration and includes USB retention but does not include camera retention. The F9MA5K2 is designed for Dash 2 configuration and includes both USB and camera retention. Ensure you order the correct kit matching your vehicle's dash configuration.
Will my factory USB port continue to work?
Yes, the F9MA5K1 includes a USB adapter that maintains factory USB port functionality, allowing continued use of existing USB connections for device charging and media playback with compatible aftermarket head units.
