CAC F9FD4K2 9" Fascia Ford Ranger 2018-21 Dash 1 Camera Aircon BT SWC

Maximum feature retention for your modern Ranger's tech upgrade.

Product Overview

The Car Audio Connect F9FD4K2 is a vehicle-specific 9-inch fascia kit engineered for 2018-2021 Ford Ranger models with Dash 1 configuration. Designed for Ranger owners who refuse to compromise functionality for modern technology, this fascia delivers complete feature retention including factory reverse camera preservation, steering wheel controls with Bluetooth buttons, and critically—factory aircon information display on compatible head units.

The universal trapezoid opening accepts 9-inch aftermarket head units from Alpine, Pioneer, Kenwood, and Nakamichi. What sets this fascia apart is its ability to retain factory climate control information on Pioneer DMH-AP6650BT and Android head units—essential for monitoring cabin temperature in extreme Australian conditions without switching between screens. Complete with camera retention for towing safety and Bluetooth button functionality for hands-free calling. Plug-and-play wiring connects directly to your Ranger's factory harnesses for installation that maintains electrical integrity in demanding work and touring environments.

Key Specifications

• Compatible with Ford Ranger 2018-2021 (Dash 1 configuration)
• 9-inch universal trapezoid fascia opening
• Includes factory reverse camera retention adapter
• Includes steering wheel control harness with Bluetooth button retention
• Retains factory aircon information on Pioneer DMH-AP6650BT and Android head units
• Factory antenna adapter included
• Plug-and-play factory wiring integration
• Model: F9FD4K2
• Manufacturer: Car Audio Connect (CAC)

Features & Benefits

Later Dash 1-Specific Engineering – Purpose-built for 2018-2021 Ford Ranger models with Dash 1 configuration. This isn't the earlier F9FD4K1 fascia—it's designed for the later Dash 1 variant with enhanced feature retention including aircon display support.

Factory Aircon Information Retention – Maintains factory climate control display on Pioneer DMH-AP6650BT and Android head units. Critical for monitoring cabin temperature in Australian heat without switching between screens—essential when working in harsh conditions or touring through remote areas.

Factory Reverse Camera Retention – The included retention adapter preserves your factory reversing camera functionality. Essential for maintaining parking safety, trailer reversing confidence, and job site maneuvering in a vehicle where rear visibility is compromised by load beds and towing equipment.

Bluetooth Button Retention – Maintain hands-free calling functionality directly from your steering wheel. Critical for tradies managing client communication on job sites and tourers staying connected during remote travel without compromising safety.

Complete Steering Wheel Control Retention – Keep full control of volume, track selection, source switching, and Bluetooth functions from your factory steering wheel buttons. Essential for maintaining driver focus during work duties or long-distance touring where concentration on the road is non-negotiable.

Work-Ready Integration – Designed to complement the modern Ranger's rugged, functional interior. Clean OEM-style finish that maintains the professional appearance expected in Australia's best-selling dual-cab ute used for demanding work and recreational applications.

Technical Specs

• Fascia Size: 9 inch (universal trapezoid opening)
• Vehicle Application: Ford Ranger 2018-2021 (Dash 1 configuration)

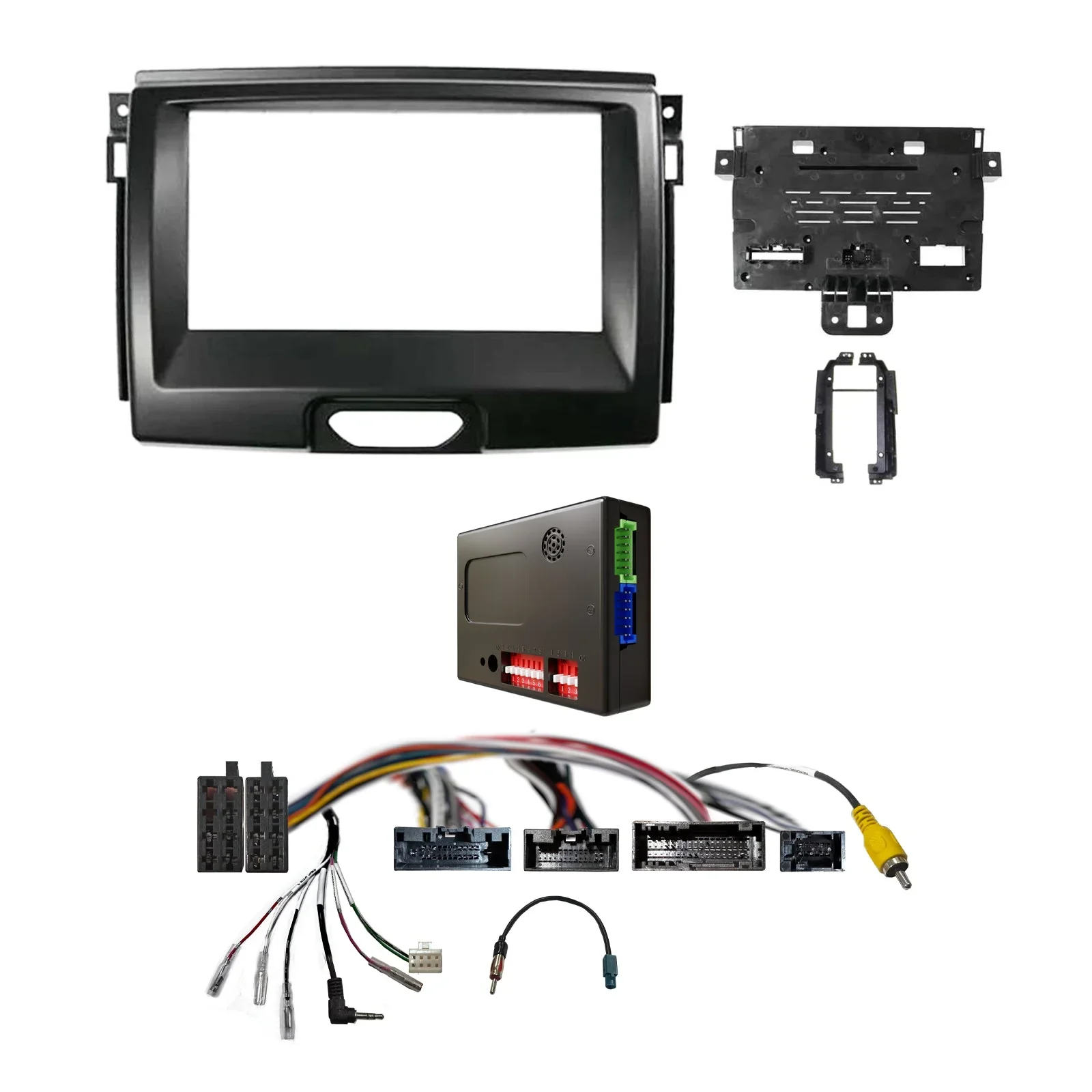

• Included Components: Fascia panel, steering wheel control harness, factory reverse camera retention adapter, antenna adapter
• Compatible Head Units: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Android stereos; universal trapezoid 9" Android head units
• Steering Wheel Controls: Retained including Bluetooth buttons (harness included)
• Reverse Camera: Retained (adapter included)
• Aircon Display: Retained on Pioneer DMH-AP6650BT and Android head units
• Antenna: Factory antenna adapter included
• Installation Type: Plug-and-play
• Model Number: F9FD4K2
• Factory Amplifier Compatibility: Not specified
• USB Retention: Not specified
• Dimensions: Not specified
• Weight: Not specified
• Finish/Color: Not specified

Frequently Asked Questions

Will this fit my 2020 Ford Ranger?

This fascia is designed for Ford Ranger models from 2018 to 2021 with Dash 1 configuration. You must verify your Ranger has Dash 1 dash type before purchase (not Dash 2 or Dash 3). Contact us with your vehicle details for dash configuration confirmation.

What's the difference between this and F9FD4K1?

F9FD4K1 is for 2015-2018 Dash 1 Rangers, while F9FD4K2 is for 2018-2021 Dash 1 Rangers. The F9FD4K2 adds factory aircon display retention on compatible head units. For 2018 Rangers, contact us to determine which Dash 1 variant you have.

What does "retain factory aircon information" mean?

When using Pioneer DMH-AP6650BT or compatible Android head units, your factory climate control information (temperature settings, fan speed, etc.) continues to display on the new head unit screen. This means you don't lose visibility of aircon status when upgrading—critical for monitoring cabin comfort without switching screens.

Will my factory reverse camera still work?

Yes, the kit includes a factory reverse camera retention adapter specifically for Dash 1 Rangers. Your existing reversing camera will continue working through the new head unit, maintaining essential towing and parking safety functionality.

How difficult is the installation?

The plug-and-play design simplifies wiring, but Ford Ranger dash removal requires careful handling of climate control integration and trim panels. Suitable for experienced DIY installers familiar with Ford dashboard disassembly. Professional installation recommended given the Ranger's integrated systems and importance as a work vehicle.

Compatible With / Goes Well With

Confirmed Compatible Head Units:

• Alpine AW409S 9" Android Auto/CarPlay head unit
• Alpine AX809 9" head unit
• Kenwood DMX80AXS 9" multimedia receiver
• Pioneer DMH-AP6650BT 9" wireless CarPlay/Android Auto (with aircon display retention)
• Nakamichi 9" Android head units with CAN bus integration
• Universal trapezoid 9" aftermarket Android stereos (aircon retention on selected models)

Note: Factory aircon information retention confirmed on Pioneer DMH-AP6650BT and Android head units. Other head units function normally but may not display climate control information.

Compatible Vehicles:

• Ford Ranger 2018-2021 (Dash 1 configuration)

Goes Well With:

• Pioneer DMH-AP6650BT head unit (for full aircon display retention)
• Steering wheel control patch leads (if required for specific head unit)
• Factory amplifier retention adapters (if equipped with premium audio)
• Ford-specific trim removal tools
• Dash camera systems for work vehicle documentation
• UHF radio integration for outback travel and job site communication
• Trailer camera systems for towing applications

Important: This fascia is designed for Dash 1 configuration specifically. 2018-2021 Rangers may have Dash 1, Dash 2, or Dash 3 configurations requiring different fascia kits. Contact us to verify your Ranger's dash type before purchase.
