CAC F9FD4K1 9" Fascia Ford Ranger 2015-18 Dash 1 Camera Bluetooth SWC

Complete feature retention for your PX II Ranger's tech upgrade.

Product Overview

The Car Audio Connect F9FD4K1 is a vehicle-specific 9-inch fascia kit engineered for 2015-2018 Ford Ranger models with Dash 1 configuration. Designed for Ranger owners who need modern Android Auto or Apple CarPlay navigation with complete factory functionality preservation, this fascia delivers OEM-quality integration built to handle the demands of Australia's most popular work and recreational ute.

The universal trapezoid opening accepts 9-inch aftermarket head units from Alpine, Pioneer, Kenwood, and Nakamichi, giving you flexibility in choosing your navigation and communication system. Complete feature retention includes factory reverse camera preservation—critical for a vehicle of the Ranger's size when towing trailers or reversing with loads—plus steering wheel controls with Bluetooth buttons for hands-free calling. Plug-and-play wiring connects directly to your Ranger's factory harnesses for installation that maintains electrical integrity in demanding work and touring environments.

Key Specifications

• Compatible with Ford Ranger 2015-2018 (Dash 1 configuration)
• 9-inch universal trapezoid fascia opening
• Includes factory reverse camera retention adapter
• Includes steering wheel control harness with Bluetooth button retention
• Factory antenna adapter included
• Plug-and-play factory wiring integration
• Model: F9FD4K1
• Manufacturer: Car Audio Connect (CAC)

Features & Benefits

Ranger Dash 1-Specific Engineering – Purpose-built for 2015-2018 Ford Ranger models with Dash 1 configuration. This isn't a generic ute adapter—it's designed around Dash 1's exact mounting points and factory wiring for precise fitment in Australia's best-selling 4WD platform.

Factory Reverse Camera Retention – The included retention adapter preserves your factory reversing camera functionality. Essential for maintaining parking safety, trailer reversing confidence, and job site maneuvering in a vehicle where rear visibility is compromised by load beds and towing equipment.

Bluetooth Button Retention – Maintain hands-free calling functionality directly from your steering wheel. Critical for tradies managing client communication on job sites and tourers staying connected during remote travel without compromising safety.

Complete Steering Wheel Control Retention – Keep full control of volume, track selection, source switching, and Bluetooth functions from your factory steering wheel buttons. Essential for maintaining driver focus during work duties or long-distance touring where concentration on the road is non-negotiable.

Work-Ready Integration – Designed to complement the Ranger's rugged, functional interior. Clean OEM-style finish that maintains the professional appearance expected in a modern dual-cab ute used for demanding work and recreational applications.

Plug-and-Play Installation – Direct connection to factory wiring harnesses eliminates cutting and splicing. Reduces installation complexity and maintains wiring integrity—critical for a vehicle where electrical reliability affects work capability and towing functions.

Technical Specs

• Fascia Size: 9 inch (universal trapezoid opening)
• Vehicle Application: Ford Ranger 2015-2018 (Dash 1 configuration)
• Included Components: Fascia panel, steering wheel control harness, factory reverse camera retention adapter, antenna adapter
• Compatible Head Units: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Android stereos; universal trapezoid 9" Android head units
• Steering Wheel Controls: Retained including Bluetooth buttons (harness included)
• Reverse Camera: Retained (adapter included)
• Antenna: Factory antenna adapter included
• Installation Type: Plug-and-play
• Model Number: F9FD4K1
• Factory Amplifier Compatibility: Not specified
• USB Retention: Not specified
• Aircon Display Retention: Not specified
• Dimensions: Not specified
• Weight: Not specified
• Finish/Color: Not specified

Frequently Asked Questions

Will this fit my 2017 Ford Ranger?

This fascia is designed for Ford Ranger models from 2015 to 2018 with Dash 1 configuration. You must verify your Ranger has Dash 1 dash type before purchase (not Dash 2 or Dash 3). Contact us with your vehicle details for dash configuration confirmation.

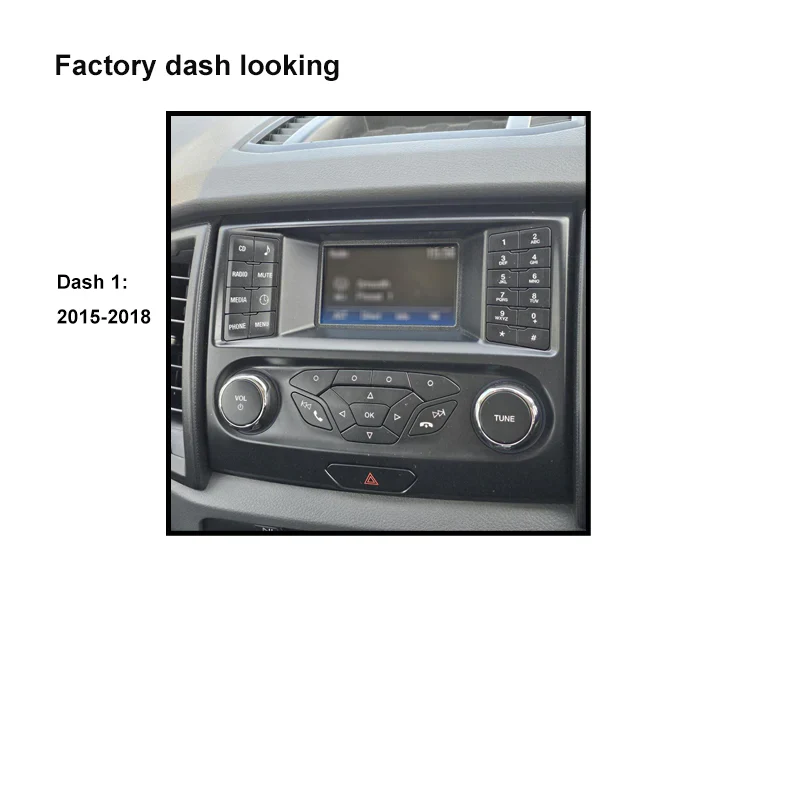

How do I know if my Ranger has Dash 1?

Dash 1 refers to a specific dashboard configuration in 2015-2018 Rangers. Contact us with your Ranger's year, build date, trim level, and VIN for dash type verification before purchase. Different Rangers within these years may have Dash 1, Dash 2, or Dash 3 configurations requiring different fascia kits.

Will my factory reverse camera still work?

Yes, the kit includes a factory reverse camera retention adapter specifically for Dash 1 Rangers. Your existing reversing camera will continue working through the new head unit, maintaining essential towing and parking safety functionality.

Can I still use my Bluetooth button after installation?

Yes, the included steering wheel control harness specifically retains the Bluetooth button functionality. When paired with a compatible head unit, you'll maintain hands-free calling control directly from your steering wheel buttons.

How difficult is the installation?

The plug-and-play design simplifies wiring, but Ford Ranger dash removal requires careful handling of climate control integration and trim panels. Suitable for experienced DIY installers familiar with Ford dashboard disassembly. Professional installation recommended given the Ranger's integrated systems and importance as a work vehicle.

Compatible With / Goes Well With

Confirmed Compatible Head Units:

• Alpine AW409S 9" Android Auto/CarPlay head unit
• Alpine AX809 9" head unit
• Kenwood DMX80AXS 9" multimedia receiver
• Pioneer DMH-AP6650BT 9" wireless CarPlay/Android Auto
• Nakamichi 9" Android head units with CAN bus integration
• Universal trapezoid 9" aftermarket Android stereos

Compatible Vehicles:

• Ford Ranger 2015-2018 (Dash 1 configuration)

Goes Well With:

• Steering wheel control patch leads (if required for specific head unit)
• Factory amplifier retention adapters (if equipped with premium audio)
• Ford-specific trim removal tools
• Dash camera systems for work vehicle documentation
• UHF radio integration for outback travel and job site communication
• Trailer camera systems for towing applications
• USB extension cables for device charging

Important: This fascia is designed for Dash 1 configuration specifically. 2015-2018 Rangers may have Dash 1, Dash 2, or Dash 3 configurations requiring different fascia kits. Contact us to verify your Ranger's dash type before purchase.
