CAC F9FD23K1 9" Fascia Ford Ranger 2015-21 Dash 3 Camera Aircon SWC

Keep your climate controls visible while upgrading to modern navigation and connectivity.

Product Overview

The Car Audio Connect F9FD23K1 is a vehicle-specific 9-inch fascia kit engineered for 2015-2021 Ford Ranger models with Dash 3 configuration. Designed for Ranger owners who refuse to compromise functionality for modern technology, this fascia delivers complete feature retention including a critical capability: maintaining factory aircon information display on compatible head units.

The universal trapezoid opening accepts 9-inch aftermarket head units from Alpine, Pioneer, Kenwood, and Nakamichi. What sets this fascia apart is its ability to retain factory climate control information on Pioneer DMH-AP6650BT and Android head units—essential for monitoring cabin temperature in extreme Australian conditions without taking eyes off your new navigation screen. Complete feature preservation includes factory reverse camera retention, steering wheel controls with Bluetooth buttons, and antenna integration. Plug-and-play wiring connects directly to your Ranger's factory harnesses for installation that won't compromise electrical integrity.

Key Specifications

• Compatible with Ford Ranger 2015-2018 (Dash 3 configuration)
• Compatible with Ford Ranger 2018-2021 (Dash 3 configuration)
• 9-inch universal trapezoid fascia opening
• Includes factory reverse camera retention adapter
• Includes steering wheel control harness with Bluetooth button retention
• Retains factory aircon information on Pioneer DMH-AP6650BT and Android head units
• Factory antenna adapter included
• Plug-and-play factory wiring integration
• Model: F9FD23K1
• Manufacturer: Car Audio Connect (CAC)

Features & Benefits

Dual Generation Compatibility – Engineered to fit both 2015-2018 and 2018-2021 Ford Ranger models with Dash 3 configuration. One fascia solution spans two Ranger generations, providing upgrade continuity for fleet operators or owners who've upgraded Rangers but want consistent head unit installations.

Factory Aircon Information Retention – Maintains factory climate control display on Pioneer DMH-AP6650BT and Android head units. Critical for monitoring cabin temperature in Australian heat without switching between screens—essential when working in harsh conditions or touring through remote areas.

Factory Reverse Camera Retention – The included retention adapter preserves your factory reversing camera functionality. Essential for a vehicle of the Ranger's size when towing trailers, reversing with loads, or maneuvering on tight job sites where rear visibility is compromised.

Bluetooth Button Retention – Keep hands-free calling functionality directly from your steering wheel. Critical for tradies who need to stay connected to clients and suppliers without compromising safety, and for tourers managing communication during long-distance travel.

Complete Steering Wheel Control Retention – Maintain full control of volume, track selection, source switching, and Bluetooth functions from your factory steering wheel buttons. Essential for maintaining driver focus during work duties or touring where concentration on the road is non-negotiable.

Work-Ready Integration – Designed to complement the Ranger's rugged, functional interior across both generations. Clean OEM-style finish that maintains the professional appearance expected in a modern dual-cab ute used for demanding work and recreational applications.

Technical Specs

• Fascia Size: 9 inch (universal trapezoid opening)
• Vehicle Application: Ford Ranger 2015-2018 (Dash 3 configuration)
• Vehicle Application: Ford Ranger 2018-2021 (Dash 3 configuration)

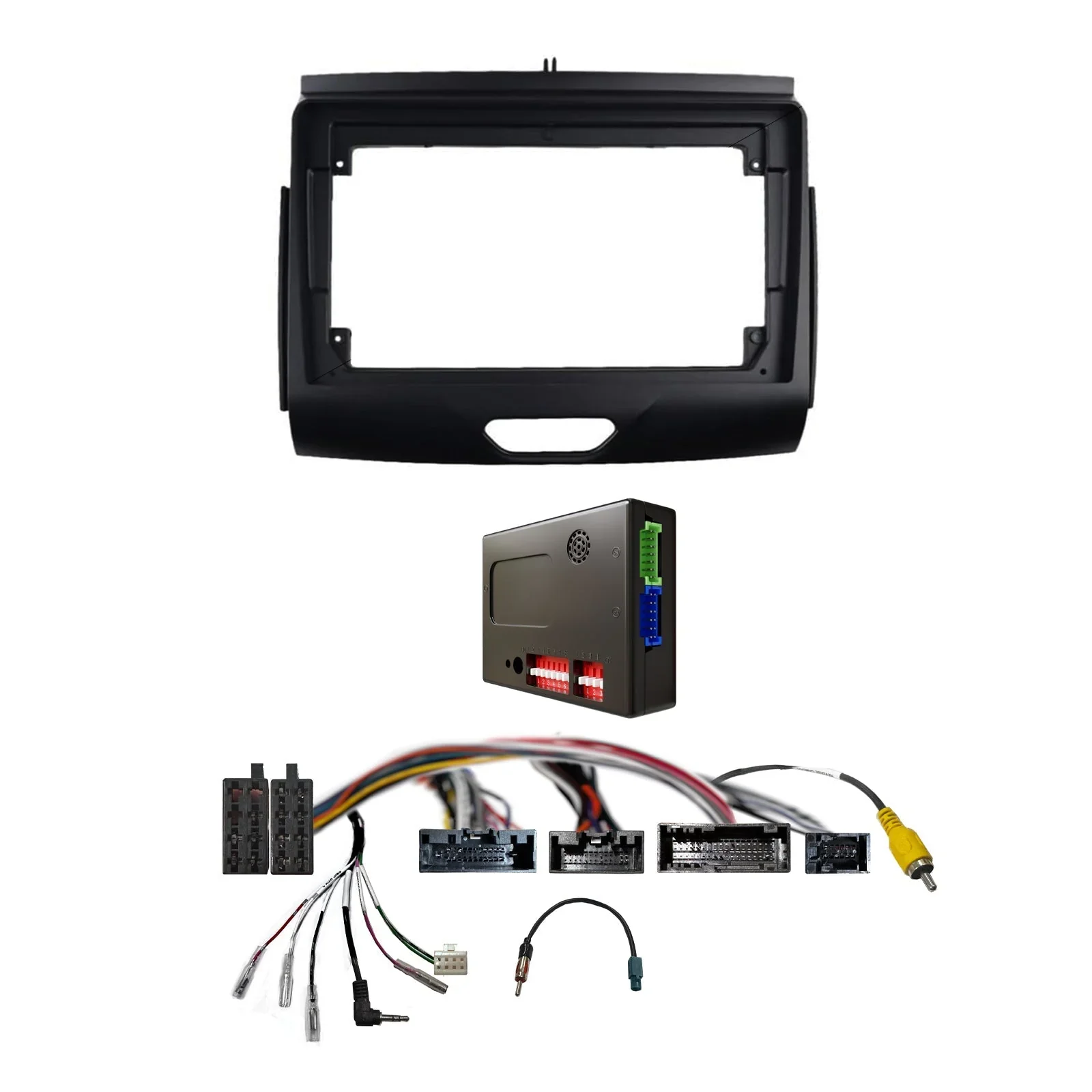

• Included Components: Fascia panel, steering wheel control harness, factory reverse camera retention adapter, antenna adapter
• Compatible Head Units: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Android stereos; universal trapezoid 9" Android head units
• Steering Wheel Controls: Retained including Bluetooth buttons (harness included)
• Reverse Camera: Retained (adapter included)
• Aircon Display: Retained on Pioneer DMH-AP6650BT and Android head units
• Antenna: Factory antenna adapter included
• Installation Type: Plug-and-play
• Model Number: F9FD23K1
• Factory Amplifier Compatibility: Not specified
• USB Retention: Not specified
• Dimensions: Not specified
• Weight: Not specified
• Finish/Color: Not specified

Frequently Asked Questions

Will this fit my 2017 Ford Ranger?

This fascia is designed for Ford Ranger models from 2015 to 2021 with Dash 3 configuration. Both 2015-2018 and 2018-2021 Ranger generations with Dash 3 are compatible. Verify your Ranger has Dash 3 dash type before purchase. Contact us with your vehicle details for confirmation.

What does "retain factory aircon information" mean?

When using Pioneer DMH-AP6650BT or compatible Android head units, your factory climate control information (temperature settings, fan speed, etc.) continues to display on the new head unit screen. This means you don't lose visibility of aircon status when upgrading—critical for monitoring cabin comfort without switching screens.

Does aircon retention work with all head units?

No, factory aircon information retention is confirmed for Pioneer DMH-AP6650BT and Android head units only. Other head units (Alpine, Kenwood, Nakamichi) will function normally but may not display factory climate control information. Contact us to confirm aircon display compatibility for your chosen head unit.

Will my factory reverse camera still work?

Yes, the kit includes a factory reverse camera retention adapter specifically for Dash 3 Rangers. Your existing reversing camera will continue working through the new head unit, maintaining essential towing and parking safety functionality.

How do I know if my Ranger has Dash 3?

Dash 3 refers to a specific dashboard configuration. Contact us with your Ranger's year, build date, and VIN for confirmation. We can verify your dash type to ensure this fascia is compatible before purchase.

Compatible With / Goes Well With

Confirmed Compatible Head Units:

• Alpine AW409S 9" Android Auto/CarPlay head unit
• Alpine AX809 9" head unit
• Kenwood DMX80AXS 9" multimedia receiver
• Pioneer DMH-AP6650BT 9" wireless CarPlay/Android Auto (with aircon display retention)
• Nakamichi 9" Android head units with CAN bus integration
• Universal trapezoid 9" aftermarket Android stereos (aircon retention on selected models)

Note: Factory aircon information retention confirmed on Pioneer DMH-AP6650BT and Android head units. Other head units function normally but may not display climate control information.

Compatible Vehicles:

• Ford Ranger 2015-2018 (Dash 3 configuration)
• Ford Ranger 2018-2021 (Dash 3 configuration)

Goes Well With:

• Pioneer DMH-AP6650BT head unit (for full aircon display retention)
• Steering wheel control patch leads (if required for specific head unit)
• Factory amplifier retention adapters (if equipped with premium audio)
• Ford-specific trim removal tools
• Dash camera systems for work vehicle documentation
• UHF radio integration for job site communication
• Trailer camera systems for towing applications

Important: This fascia is designed for Dash 3 configuration specifically. Contact us to verify your Ranger's dash type before purchase.
