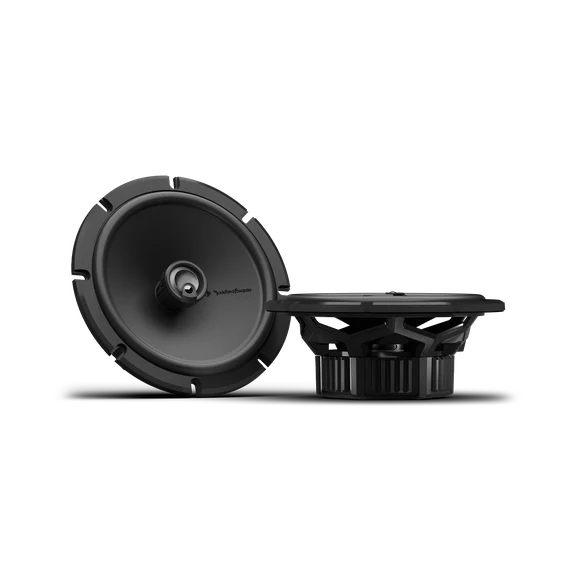

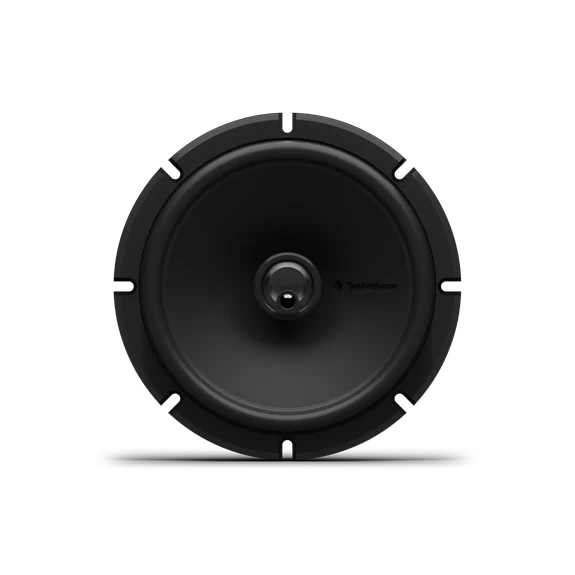

Rockford Fosgate P1V2-675 Punch P1 6.75" 3-Way Coaxial Speakers

Premium 6.75-inch 3-way coaxial speakers engineered with VAST 2.0 technology and Auto Fit Architecture for seamless integration and relentless performance in modern vehicles.

Product Overview

The Rockford Fosgate P1V2-675 Punch P1 represents the next generation of automotive audio excellence, engineered to fit perfectly and built to deliver commanding performance that puts you in control. Powered by advanced VAST 2.0 technology, these speakers provide a 25% increase in cone area compared to previous generations, resulting in maximum output and deeper, more impactful bass that transforms your driving experience. The Auto Fit Architecture features redesigned frame geometry, precision-engineered mounting holes, removable motor cover, and optimized speaker diameter ensuring seamless integration into today's modern vehicles without compromise. The Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges provide precise alignment for drop-in integration into most factory mounting locations, making installation straightforward and adaptable regardless of your vehicle's configuration. Built with class-leading construction including reinforced carbon fiber baskets, Santoprene surrounds, and Nomex spiders, every component and material was chosen for strength and engineered for the long haul, delivering relentless performance that lasts no matter how hard you drive them. The Tru-Sight tweeter ensures precise high-frequency alignment with exceptional clarity, while the 3-way configuration including inverted dome tweeter and piezo super tweeter reproduces every note with accuracy across the full frequency spectrum from 49Hz to 25kHz.

Features & Benefits

VAST 2.0 Technology: Advanced cone design delivers 25% increase in cone area compared to previous generation, resulting in maximum output capability and deeper, more impactful bass response that significantly outperforms standard factory speakers and traditional coaxial designs.

Auto Fit Architecture: Comprehensive engineering approach featuring redesigned frame geometry, updated mounting flanges, removable motor cover, and optimized diameter ensuring seamless integration into modern vehicles with drop-in fitment that eliminates modification requirements and installation complications.

Tru-Sight Tweeter Alignment: Precision-engineered 3/4-inch Tetolon inverted dome tweeter with co-witnessed 3/8-inch polypropylene piezo super tweeter ensures accurate high-frequency reproduction and optimal sound staging, delivering crystal-clear vocals and detailed cymbal reproduction with exceptional imaging characteristics.

Reinforced Carbon Fiber Basket: 15% glass-fiber reinforced PA66 injection-molded composite basket construction provides superior strength and rigidity compared to stamped steel baskets, eliminating resonance and flex while maintaining structural integrity under extreme output conditions for distortion-free performance.

Santoprene Half-Roll Surround: Premium Santoprene surround material chemically bonded to mica-reinforced polypropylene cone delivers exceptional low distortion characteristics and unmatched fatigue resistance, maintaining consistent performance through temperature extremes and years of demanding use without deterioration.

Nomex Spider Assembly: Fatigue and tear-resistant linear Nomex spider with ultra-flexible braided tinsel leads securely stitched to spider ensures consistent excursion control and excellent durability, maintaining proper voice coil alignment throughout the speaker's operational life even under high-power conditions.

ICC+ Concealed Crossover: Internal Concealed Crossover with 6dB/octave network seamlessly integrated into speaker assembly eliminates external mounting requirements while ensuring optimal frequency distribution to tweeter, super tweeter, and woofer for balanced, cohesive sound reproduction across the entire frequency range.

Removable Motor Cover: Innovative removable motor cover design accommodates tight mounting applications where rear clearance is limited, providing installation flexibility in challenging locations while maintaining full performance capability without compromising magnetic motor structure integrity.

CTA-2031 Compliant: Certified to industry-standard testing protocols ensuring published specifications for power handling and performance meet rigorous requirements, guaranteeing reliable operation and accurate performance claims backed by independent verification.

Technical Specifications

Specification	Details
Brand	Rockford Fosgate
Model Number	P1V2-675
Series	Punch P1
Speaker Type	3-Way Coaxial
Size	6.75 inches (171mm)
Power Handling (RMS)	75 Watts
Power Handling (Peak)	150 Watts
Impedance	4 Ohm
Frequency Response	49 Hz - 25 kHz
Sensitivity (1W/1M)	88 dB
Sensitivity (2.83V/1M)	91 dB
Resonant Frequency (Fs)	65 Hz
Tweeter Size	3/4 inch (19mm) Inverted Dome
Tweeter Type	Tetolon Inverted Dome
Super Tweeter Size	3/8 inch (9mm) Co-Witnessed Convex
Super Tweeter Type	Polypropylene Piezo
Voice Coil Diameter	1 inch (25.4mm)
Woofer Cone Material	20-40% Mica Reinforced Polypropylene
Surround Material	Santoprene Half-Roll
Spider Material	Nomex Linear
Basket Material	15% Glass-Fiber Reinforced PA66 Composite
Voice Coil Former	Vented Kapton
Motor Structure	High-Strength Y35 Ferrite (5mm Larger)
Crossover Type	ICC+ Internal Concealed 6dB/Octave
Tweeter Crossover Point	9kHz @ 6dB/Octave High-Pass
Cutout Diameter	5.67 inches (144mm)
Mounting Depth (With Cover)	2.48 inches (62.9mm)
Minimum Mounting Depth (No Cover)	2.24 inches (56.8mm)
Front Side Clearance	0.51 inches (12.9mm)
Removable Motor Cover	Yes
Grille Included	No (Sold Separately)
CTA-2031 Compliant	Yes
Warranty	2 Years
Quantity	2 Speakers (Pair)

Compatible With

The Rockford Fosgate P1V2-675 features universal 6.75-inch fitment compatible with vehicles featuring 6.75-inch factory speaker locations. The Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges accommodates various mounting configurations including door panels and rear decks. The removable motor cover provides installation flexibility in tight mounting applications with limited rear clearance. Verify your factory speaker size is 6.75 inches, cutout diameter accommodates 5.67 inches, and mounting depth allows minimum 2.24 inches clearance (or 2.48 inches with motor cover installed).

Frequently Asked Questions

Q: Will these speakers fit my vehicle? A: The P1V2-675 fits most vehicles with 6.75-inch speaker openings. Verify your factory speaker size is 6.75 inches, cutout diameter accommodates 5.67 inches, and mounting depth allows at least 2.24 inches clearance without motor cover or 2.48 inches with cover. The Auto Fit Architecture with F.L.W.R. technology accommodates various mounting configurations. Contact us with your vehicle year, make, and model for specific fitment confirmation.

Q: Do I need an external amplifier for these speakers? A: No external amplifier is required. The P1V2-675 performs excellently with factory head units and amplifiers rated at 75 watts RMS per channel. However, pairing with an aftermarket amplifier capable of delivering 75 watts RMS at 4 ohms per channel will maximize VAST 2.0 technology performance potential and unlock the full dynamic range these speakers are capable of delivering.

Q: What's the advantage of VAST 2.0 technology? A: VAST 2.0 technology provides a 25% increase in cone area compared to previous generation speakers, resulting in significantly greater output capability and deeper, more impactful bass response. This advanced design maximizes the available speaker diameter to deliver performance typically associated with larger speakers while maintaining compatibility with standard 6.75-inch mounting locations.

Q: Are speaker grilles included with these speakers? A: No, grilles are sold separately. The P1V2-675 package includes two speakers, cutout template, mounting hardware, speaker wire, crimp connectors, and butt connectors. Rockford Fosgate offers compatible grilles and trim rings as separate accessories allowing you to choose the aesthetic that best matches your vehicle's interior or personal preference.

Q: What does the removable motor cover feature provide? A: The removable motor cover allows installation in tight mounting applications where rear clearance is limited. With the motor cover installed, mounting depth is 2.48 inches. Removing the motor cover reduces minimum mounting depth to 2.24 inches, providing installation flexibility in challenging locations while maintaining full magnetic motor structure performance and speaker capability without compromise.
